Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •LEGRAND
Technical specifications
Rated insulation voltage Ui500V
Mounting methodDIN rail
Built-in depth44mm
Frequency50 Hz
Connectable conductor cross section multi-wired0.75 - 35mm²
Connectable conductor cross section solid-core0.75 - 50mm²
Degree of protection (IP)IP20
Short-time delayed trippingNo
Pollution degree2
With interlocking deviceYes
Ambient temperature during operating-25 - 60°C
Rated impulse withstand voltage Uimp4kV
Short-circuit breaking capacity (Icw)10kA
Selective protectionNo
Additional equipment possibleYes
Surge current capacity0.25kA
Width in number of modular spacings4
Rated current25A
Rated voltage400V
Number of poles4
Rated fault current0.03A
Leakage current typeA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

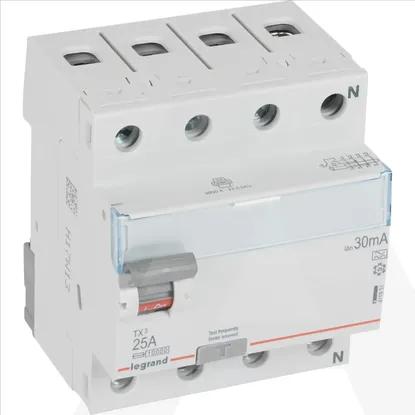

411931 | TX3 RCCB 4P D 30MA a Cebec
