Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •LEGRAND
Technical specifications
Rated insulation voltage Ui500V
Mounting methodDIN rail
Built-in depth44mm
Frequency50 Hz
Connectable conductor cross section solid-core0.75 - 50mm²
Degree of protection (IP)IP20
Pollution degree2
Connectable conductor cross section multi-wired0.75 - 35mm²
Ambient temperature during operating-25 - 60°C
Rated impulse withstand voltage Uimp4kV
Short-time delayed trippingNo
Short-circuit breaking capacity (Icw)10kA
Additional equipment possibleYes
Width in number of modular spacings4
With interlocking deviceYes
Selective protectionNo
Surge current capacity0.25kA
Rated current40A
Rated voltage400V
Number of poles4
Rated fault current0.03A
Leakage current typeA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

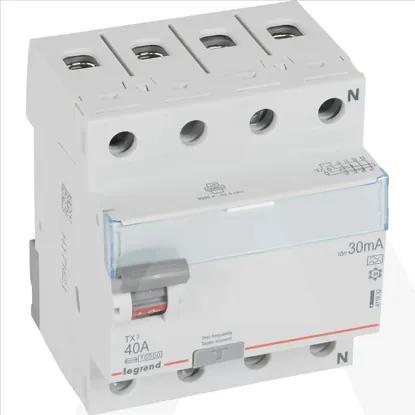

411932 | TX3 RCCB 4P D 30MA a Cebec
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Residual current circuit breaker (RCCB)
- 1 KOM
- LEGRAND
DetailsTechnical specifications
Technical specifications
Rated insulation voltage Ui
500V
Mounting method
DIN rail
Built-in depth
44mm
Frequency
50 Hz
Connectable conductor cross section solid-core
0.75 .. 50mm²
Degree of protection (IP)
IP20
Pollution degree
2
Connectable conductor cross section multi-wired
0.75 .. 35mm²
Ambient temperature during operating
-25 .. 60°C
Rated impulse withstand voltage Uimp
4kV
Short-time delayed tripping
Short-circuit breaking capacity (Icw)
10kA
Additional equipment possible
Width in number of modular spacings
4
With interlocking device
Selective protection
Surge current capacity
0.25kA
Rated current
40A
Rated voltage
400V
Number of poles
4
Rated fault current
0.03A
Leakage current type
A
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
