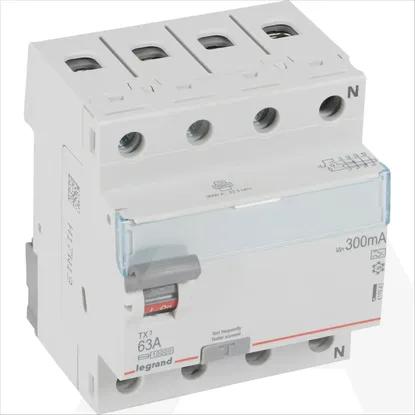

411943 | TX3 RCCB 4P D 300MA A CEBEC
Code: 1860292
Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •LEGRAND
Technical specifications
Degree of protection (IP)IP20
Mounting methodDIN rail
Number of poles4
Rated current63A
Rated voltage400V
Width in number of modular spacings4
Built-in depth44mm
Ambient temperature during operating-25 - 60°C
Connectable conductor cross section multi-wired0.75 - 35mm²
Connectable conductor cross section solid-core0.75 - 50mm²
Rated impulse withstand voltage Uimp4kV
Rated insulation voltage Ui500V
Additional equipment possibleYes
Pollution degree2
Frequency50 Hz
Leakage current typeA
With interlocking deviceYes
Surge current capacity0.25kA
Rated fault current300mA
Short-circuit breaking capacity (Icw)10kA
Selective protectionNo
Short-time delayed trippingNo
