Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •LEGRAND
Technical specifications
Number of poles4
Rated current40A
Rated voltage400V
Rated insulation voltage Ui500V
Mounting methodDIN rail
Built-in depth44mm
Rated fault current300mA
Frequency50 Hz
Leakage current typeA
Short-circuit breaking capacity (Icw)10kA
Degree of protection (IP)IP20
Surge current capacity3kA
Width in number of modular spacings4
Pollution degree2
Selective protectionYes
Short-time delayed trippingYes
Additional equipment possibleYes
Ambient temperature during operating-25 - 60°C
With interlocking deviceYes
Rated impulse withstand voltage Uimp4kV
Connectable conductor cross section solid-core0.75 - 50mm²
Connectable conductor cross section multi-wired0.75 - 35mm²
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

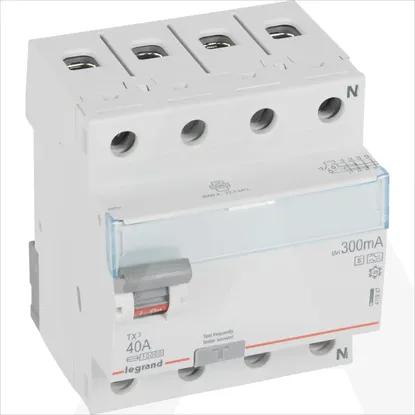

411947 | TX3 RCCB 4P D 300MA A-S CEBEC
