Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •LEGRAND
Technical specifications
Surge current capacity3kA
Frequency50 Hz
Rated current63A
Pollution degree2
Short-time delayed trippingYes
Degree of protection (IP)IP20
Rated insulation voltage Ui500V
Width in number of modular spacings4
Rated voltage400V
Rated fault current300mA
Number of poles4
Mounting methodDIN rail
Leakage current typeA
Short-circuit breaking capacity (Icw)10kA
Selective protectionYes
Connectable conductor cross section solid-core0.75 - 50mm²
Built-in depth44mm
Connectable conductor cross section multi-wired0.75 - 35mm²
Additional equipment possibleYes
Ambient temperature during operating-25 - 60°C
With interlocking deviceYes
Rated impulse withstand voltage Uimp4kV
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

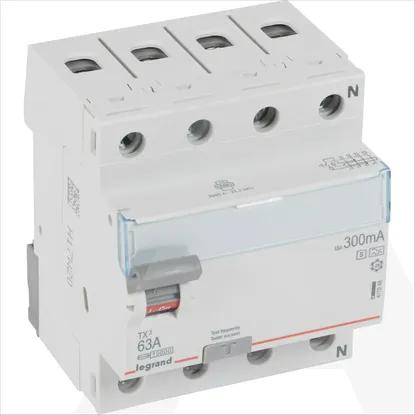

411948 | TX3 RCCB 4P D 300MA A-S CEBEC
