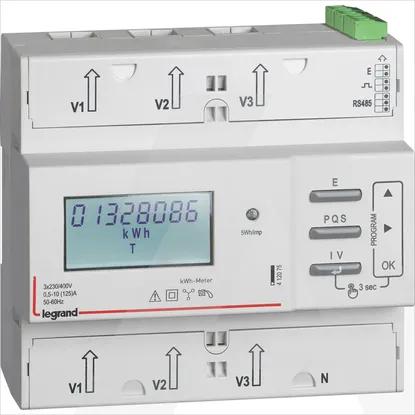

412075 | EMDX-3P 125A Brojilo RS485 MID

Code: 1860298

ManufacturerLegrand
Catalog number412075
TypeLegrand 412075
CategoryKilowatt-hour meter
EAN code3414970968388

Details

  • •Meters
  • •Kilowatt-hour meter
  • •1 KOM
  • •LEGRAND

Technical specifications

Suitable forPurchase
Type of indicationDigital
Number of positions total (counter)8
ModelDirect measurement
Degree of protection (IP)IP54
Mounting methodDRA (DIN-rail adapter)
Frequency47 - 63Hz
Width in number of modular spacings6
Escapement mechanismYes
ApprovalMeasuring Instruments Directive
Pulse typeS0
Accuracy classB
CalibratedYes
Type of interfaceRS-485
Measurement type load profileNo
Tariff controlExternal
With lock codeYes
Pulse rate0.001 - 100Imp/kWh (kvarh)
Tariff typeTwo-tariff
Nominal voltage (Un) L-L340 - 465V
EEC40 signatureNo
Pulse outputOptic
Pole typeFour conductor
Energy typeEffective power and blind power
Max. current (Imax)125A
Type of meterElectronic
Nominal voltage (Un) N-L197 - 265V
Nominal current (In)20A
