Details
- •Luminaires
- •Emergency luminaire
- •1 KOM
- •LEGRAND
Technical specifications
Width110mm
FunctionEscape route lighting/signage
Conductor cross section2.5mm²
Lamp holderOther
Mounting methodWall surface mounted
Outer diameter-mm
Protection classII
Built-in diameter-mm
Type of control gearLED operating device current-controlled
Colour housingWhite
Wiring systemStandby switching
Number of lighting heads1
Height/depth41mm
Power supply systemPeripheral (individual battery)
Material housingPlastic
Material coverPlastic, opal
Voltage typeAC
Type of indicatorOnly single-sided
Suitable for labelling typeSticker
Built-in length-mm
Number of poles4
Length210mm
Connection typeOther
Built-in width-mm
Lamp typeLED not exchangeable
Degree of protection (IP)IP42
Nominal voltage230 - 230V
Luminaire with limited surface temperature, sign "D“No
Suitable for number of lamps-
With light sourceYes
Impact strengthIK07
Battery qualityNiCd
Max. system power35W
Colour temperature5700 - 5700K
Monitoring equipmentNone
Rated life time L70/B10 at 25 °C150000h
With pictogramNo
Rated life time L70/B50 at 25 °C250000h
Rated life time L90/B10 at 25 °C48000h
Recognition distance-m
With remote switch connectionNo
Rated life time L80/B10 at 25 °C97000h
Luminous flux in standby mode0lm
Rated life time L80/B50 at 25 °C156000h
Rated luminous flux according to IEC 62722-2-1350lm
Rated life time L90/B50 at 25 °C75000h
Light distributorDiffuser lens/optic/panel
Nominal operation time1 - 1h
Energy efficiency class of the built-in lampA++, A+, A (LED)
LED nominal current at constant current150 - 150mA
Rated ambient temperature according to IEC62722-2-1- - -°C
Power factor-
Built-in height/depth-mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

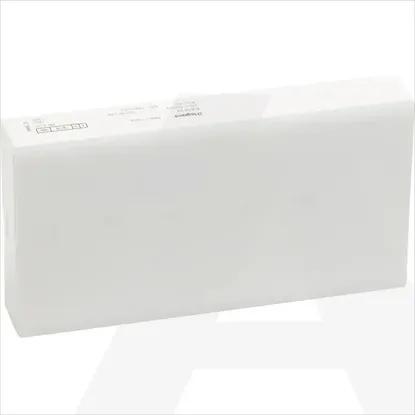

661624 | URA ONE NM 350LM 1H IP42 STD
