Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •EATON
Technical specifications
Degree of protection (IP)IP20
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as change-over contact0
Overload release current setting40 - 100A
Rated voltage690 - 690V
Number of auxiliary contacts as normally closed contact0
Number of poles3
Rated permanent current Iu100A
Motor drive integratedNo
Position of connection for main current circuitFront side
With integrated under voltage releaseNo
Suitable for DIN rail (top hat rail) mountingNo
Device constructionBuilt-in device fixed built-in technique
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz50kA
With switched-off indicatorNo
Type of control elementRocker lever
Integrated earth fault protectionNo
Motor drive optionalYes
Type of electrical connection of main circuitScrew connection
Adjustment range undelayed short-circuit release2 - 18A
DIN rail (top hat rail) mounting optionalYes
Complete device with protection unitYes
Adjustment range short-term delayed short-circuit release2 - 10A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

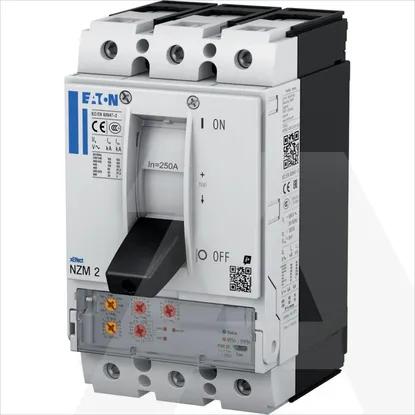

NZMN2-VX100
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Power circuit-breaker for trafo/generator/installation protection
- 1 KOM
- EATON
DetailsTechnical specifications
Technical specifications
Degree of protection (IP)
IP20
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as change-over contact
0
Overload release current setting
40 .. 100A
Rated voltage
690 .. 690V
Number of auxiliary contacts as normally closed contact
0
Number of poles
3
Rated permanent current Iu
100A
Motor drive integrated
Position of connection for main current circuit
Front side
With integrated under voltage release
Suitable for DIN rail (top hat rail) mounting
Device construction
Built-in device fixed built-in technique
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
50kA
With switched-off indicator
Type of control element
Rocker lever
Integrated earth fault protection
Motor drive optional
Type of electrical connection of main circuit
Screw connection
Adjustment range undelayed short-circuit release
2 .. 18A
DIN rail (top hat rail) mounting optional
Complete device with protection unit
Adjustment range short-term delayed short-circuit release
2 .. 10A
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
