Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •EATON
Technical specifications
Number of poles3
With integrated under voltage releaseNo
Overload release current setting40 - 100A
Number of auxiliary contacts as change-over contact0
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Rated permanent current Iu100A
Rated voltage690 - 690V
Position of connection for main current circuitFront side
Type of electrical connection of main circuitScrew connection
Motor drive integratedNo
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz50kA
Type of control elementRocker lever
Adjustment range undelayed short-circuit release2 - 18A
Degree of protection (IP)IP20
Adjustment range short-term delayed short-circuit release2 - 10A
With switched-off indicatorNo
DIN rail (top hat rail) mounting optionalYes
Device constructionBuilt-in device fixed built-in technique
Integrated earth fault protectionYes
Suitable for DIN rail (top hat rail) mountingNo
Complete device with protection unitYes
Motor drive optionalYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

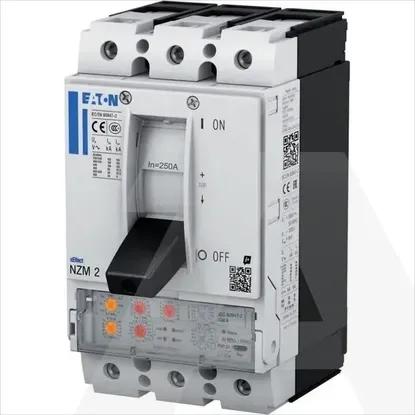

NZMN2-VX100-T
