Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •EATON
Technical specifications
Rated insulation voltage Ui500V
Release characteristicC
Rated voltage230V
Built-in depth69.5mm
Leakage current typeAC
Surge current capacity0.25kA
Current limiting class3
Voltage typeAC
Pollution degree2
Degree of protection (IP)IP20
Connectable conductor cross section solid-core1 - 25mm²
Frequency50 Hz
Over voltage category3
Rated short-circuit breaking capacity Icn according to EN 61009-16kA
Rated impulse withstand voltage Uimp4kV
Width in number of modular spacings2
Ambient temperature during operating-25 - 40°C
Rated short-circuit breaking capacity according to EN 610096kA
Suitable for flush-mounted installationNo
Anti-nuisance tripping versionNo
With interlocking deviceNo
Connectable conductor cross section multi-wired1 - 25mm²
Rated short-circuit breaking capacity according to IEC 60947-20kA
Number of protected poles1
Number of poles (total)2
Rated current16A
Rated fault current0.03A
Concurrently switching neutral conductorYes
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

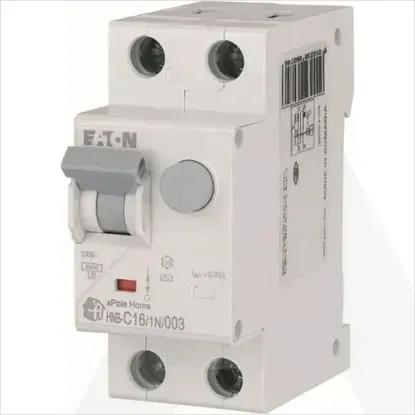

HNB-C16/1N/003
