Details
- •Low-voltage industrial components
- •Power contactor, AC switching
- •1 KOM
- •EATON
Technical specifications
Depth208mm
Height189mm
Width140mm
Rated operation power at AC-3, 400 V132kW
Number of auxiliary contacts as normally open contact2
Rated control supply voltage Us at DC0 - 0V
Number of auxiliary contacts as normally closed contact2
Number of normally closed contacts as main contact0
Rated operation current Ie at AC-1, 400 V429A
Voltage type for actuatingAC
Modular versionNo
Operating voltage at AC 50 Hz220 - 240V
Rated operation current Ie at AC-3, 400 V250A
Rated operation current Ie at AC-4, 400 V200A
Rated operation power at AC-4, 400 V110kW
Operating voltage at AC 60 Hz220 - 240V
Type of electrical connection of main circuitScrew connection
Rated control supply voltage Us at AC 50HZ220 - 240V
Rated control supply voltage Us at AC 60HZ220 - 240V
Number of normally open contacts as main contact3
Rated operation power NEMA149kW
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

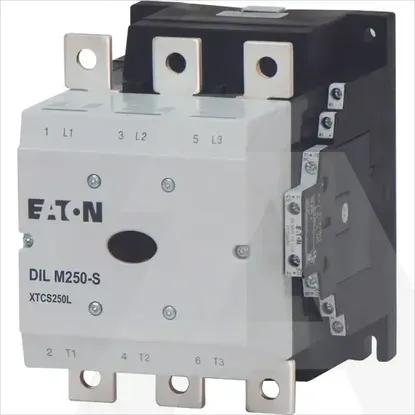

DILM250-S/22(220-240V50/60HZ)
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Power contactor, AC switching
- 1 KOM
- EATON
DetailsTechnical specificationsRelated products
Technical specifications
Depth
208mm
Height
189mm
Width
140mm
Rated operation power at AC-3, 400 V
132kW
Number of auxiliary contacts as normally open contact
2
Rated control supply voltage Us at DC
0 .. 0V
Number of auxiliary contacts as normally closed contact
2
Number of normally closed contacts as main contact
0
Rated operation current Ie at AC-1, 400 V
429A
Voltage type for actuating
AC
Modular version
Operating voltage at AC 50 Hz
220 .. 240V
Rated operation current Ie at AC-3, 400 V
250A
Rated operation current Ie at AC-4, 400 V
200A
Rated operation power at AC-4, 400 V
110kW
Operating voltage at AC 60 Hz
220 .. 240V
Type of electrical connection of main circuit
Screw connection
Rated control supply voltage Us at AC 50HZ
220 .. 240V
Rated control supply voltage Us at AC 60HZ
220 .. 240V
Number of normally open contacts as main contact
3
Rated operation power NEMA
149kW
