Details
- •Programmable logic controllers PLC
- •Logic module
- •1 KOM
- •EATON
Technical specifications
Power consumption4W
With time switch clockYes
Depth58mm
With displayYes
ExpandableYes
Number of digital inputs8
Switching current8A
Number of analogue inputs0
Height90mm
Width72mm
Number of digital outputs4
Suitable for safety functionsNo
Number of HW-interfaces parallel0
Supporting protocol for SUCONETNo
Number of HW-interfaces industrial Ethernet1
With optical interfaceNo
Supporting protocol for INTERBUSNo
RedundancyNo
Supporting protocol for TCP/IPYes
Number of HW-interfaces RS-4220
With relay outputYes
Supporting protocol for Data-HighwayNo
Supporting protocol for KNXNo
Supporting protocol for DeviceNetNo
Number of HW-interfaces RS-2320
Supporting protocol for LONNo
Supporting protocol for ModbusYes
Number of HW-interfaces serial TTY0
Supporting protocol for CANNo
Voltage type of supply voltageAC
Supporting protocol for PROFIBUSNo
Number of HW-interfaces USB0
Number of analogue outputs0
Number of HW-interfaces other0
Number of HW-interfaces RS-4850
Supporting protocol for other bus systemsNo
Supporting protocol for ASINo
Rail mounting possibleYes
Supporting protocol for EtherNet/IPNo
Appendant operation agent (Ex ia)No
Degree of protection (IP)IP20
Number of HW-interfaces Wireless0
Supporting protocol for INTERBUS-SafetyNo
Supporting protocol for PROFINET IONo
Wall mounting/direct mountingYes
Performance level according to EN ISO 13849-1None
Supporting protocol for DeviceNet SafetyNo
Number of interfaces PROFINET0
Front built-in possibleYes
Expansion deviceNo
IO link masterNo
Appendant operation agent (Ex ib)No
Basic deviceYes
Supporting protocol for SERCOSNo
Explosion safety category for dustNone
Radio standard BluetoothNo
Radio standard Wi-Fi 802.11No
Rack-assembly possibleNo
Explosion safety category for gasNone
Supporting protocol for PROFINET CBANo
Supporting protocol for Foundation FieldbusNo
Supporting protocol for AS-Interface Safety at WorkNo
Radio standard GPRSNo
Certified for UL hazardous location group E (metal dusts)No
Radio standard UMTSNo
Radio standard GSMNo
SIL according to IEC 61508None
Certified for UL hazardous location group D (propane)Yes
Supply voltage DC85 - 264V
Certified for UL hazardous location group A (acetylene)Yes
Certified for UL hazardous location class IINo
Certified for UL hazardous location class IYes
Supply voltage AC 60 Hz85 - 264V
Certified for UL hazardous location group C (ethylene)Yes
Certified for UL hazardous location division 2Yes
Certified for UL hazardous location division 1No
Supply voltage AC 50 Hz85 - 264V
Certified for UL hazardous location group F (carbonaceous dusts)No
Supporting protocol for EtherCATNo
Certified for UL hazardous location class IIINo
Certified for UL hazardous location group G (non-conductive dusts)No
Supporting protocol for SafetyBUS pNo
Certified for UL hazardous location group B (hydrogen)No
Supporting protocol for PROFIsafeNo
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

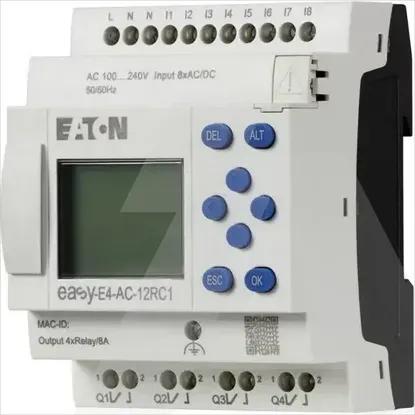

EASY-E4-AC-12RC1
