Details
- •Programmable logic controllers PLC
- •Logic module
- •1 KOM
- •EATON
Technical specifications
Width72mm
With time switch clockYes
Height90mm
ExpandableYes
Power consumption4W
Switching current8A
Depth58mm
Supporting protocol for LONNo
Number of HW-interfaces serial TTY0
Suitable for safety functionsNo
Supporting protocol for Data-HighwayNo
Number of analogue outputs0
Number of HW-interfaces industrial Ethernet1
Number of HW-interfaces RS-2320
Number of HW-interfaces other0
Supporting protocol for ModbusYes
With displayNo
Number of HW-interfaces RS-4220
Number of digital inputs8
Supporting protocol for CANNo
Supporting protocol for PROFIBUSNo
Number of HW-interfaces parallel0
Supporting protocol for ASINo
Supporting protocol for TCP/IPYes
Voltage type of supply voltageAC
Supporting protocol for KNXNo
Number of digital outputs4
Number of HW-interfaces USB0
With optical interfaceNo
Number of analogue inputs0
Number of HW-interfaces RS-4850
Supporting protocol for INTERBUSNo
Supporting protocol for other bus systemsNo
Rail mounting possibleYes
RedundancyNo
Explosion safety category for dustNone
Expansion deviceNo
Appendant operation agent (Ex ib)No
Number of interfaces PROFINET0
Supporting protocol for SUCONETNo
With relay outputYes
Wall mounting/direct mountingYes
Rack-assembly possibleNo
Front built-in possibleYes
Appendant operation agent (Ex ia)No
Explosion safety category for gasNone
Number of HW-interfaces Wireless0
Supporting protocol for DeviceNetNo
Supporting protocol for SERCOSNo
Degree of protection (IP)IP20
Supporting protocol for AS-Interface Safety at WorkNo
Performance level according to EN ISO 13849-1None
Basic deviceYes
Radio standard Wi-Fi 802.11No
Radio standard BluetoothNo
IO link masterNo
Supporting protocol for INTERBUS-SafetyNo
Supporting protocol for SafetyBUS pNo
Supporting protocol for PROFINET IONo
Supporting protocol for PROFIsafeNo
Certified for UL hazardous location group A (acetylene)Yes
Supporting protocol for Foundation FieldbusNo
Supporting protocol for PROFINET CBANo
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for EtherNet/IPNo
Certified for UL hazardous location division 1No
Supply voltage DC85 - 264V
Certified for UL hazardous location class IINo
Certified for UL hazardous location class IYes
Certified for UL hazardous location group E (metal dusts)No
Radio standard GSMNo
Certified for UL hazardous location class IIINo
Radio standard GPRSNo
Radio standard UMTSNo
Supporting protocol for EtherCATNo
Supply voltage AC 60 Hz85 - 264V
Supply voltage AC 50 Hz85 - 264V
Certified for UL hazardous location group B (hydrogen)No
Certified for UL hazardous location division 2Yes
Certified for UL hazardous location group C (ethylene)Yes
Certified for UL hazardous location group D (propane)Yes
SIL according to IEC 61508None
Certified for UL hazardous location group G (non-conductive dusts)No
Certified for UL hazardous location group F (carbonaceous dusts)No
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

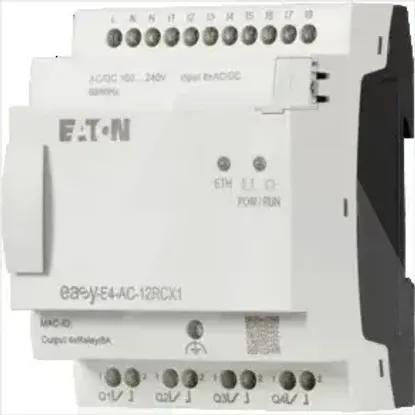

EASY-E4-AC-12RCX1
