Details
- •Programmable logic controllers PLC
- •Logic module
- •1 KOM
- •EATON
Technical specifications
Width72mm
Depth58mm
Height90mm
Suitable for safety functionsNo
Number of analogue inputs0
Power consumption3W
With displayNo
Number of digital inputs4
Number of digital outputs4
Switching current8A
With time switch clockYes
ExpandableYes
Number of HW-interfaces RS-4850
Number of HW-interfaces RS-4220
Number of HW-interfaces serial TTY0
Number of HW-interfaces RS-2320
Supporting protocol for LONNo
Number of analogue outputs0
Voltage type of supply voltageAC/DC
Number of HW-interfaces industrial Ethernet1
Number of HW-interfaces parallel0
Supporting protocol for PROFIBUSNo
Number of HW-interfaces other0
Number of HW-interfaces USB0
Supporting protocol for CANNo
Supporting protocol for TCP/IPYes
Supporting protocol for ASINo
With optical interfaceNo
Supporting protocol for other bus systemsNo
Supporting protocol for INTERBUSNo
With relay outputYes
Supporting protocol for SUCONETNo
Supporting protocol for DeviceNetNo
Supporting protocol for Data-HighwayNo
RedundancyNo
Explosion safety category for gasNone
Rail mounting possibleYes
Supporting protocol for ModbusYes
Supporting protocol for KNXNo
Explosion safety category for dustNone
Supporting protocol for SERCOSNo
Degree of protection (IP)IP20
Appendant operation agent (Ex ib)No
Appendant operation agent (Ex ia)No
Supporting protocol for INTERBUS-SafetyNo
Rack-assembly possibleNo
Wall mounting/direct mountingYes
Expansion deviceNo
Front built-in possibleYes
Number of HW-interfaces Wireless0
Number of interfaces PROFINET0
Radio standard Wi-Fi 802.11No
Radio standard BluetoothNo
IO link masterNo
Supporting protocol for PROFINET CBANo
Basic deviceYes
Radio standard GPRSNo
Radio standard GSMNo
Supporting protocol for PROFINET IONo
Supply voltage AC 50 Hz20.4 - 26.4V
Supporting protocol for PROFIsafeNo
Supporting protocol for SafetyBUS pNo
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for EtherNet/IPNo
Supply voltage DC10.2 - 28.8V
Supply voltage AC 60 Hz20.4 - 26.4V
Supporting protocol for AS-Interface Safety at WorkNo
Performance level according to EN ISO 13849-1None
Radio standard UMTSNo
Supporting protocol for Foundation FieldbusNo
Certified for UL hazardous location group B (hydrogen)No
Certified for UL hazardous location class IYes
Certified for UL hazardous location division 2Yes
SIL according to IEC 61508None
Certified for UL hazardous location division 1No
Certified for UL hazardous location group C (ethylene)Yes
Certified for UL hazardous location class IIINo
Certified for UL hazardous location class IINo
Certified for UL hazardous location group A (acetylene)Yes
Supporting protocol for EtherCATNo
Certified for UL hazardous location group E (metal dusts)No
Certified for UL hazardous location group F (carbonaceous dusts)No
Certified for UL hazardous location group D (propane)Yes
Certified for UL hazardous location group G (non-conductive dusts)No
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

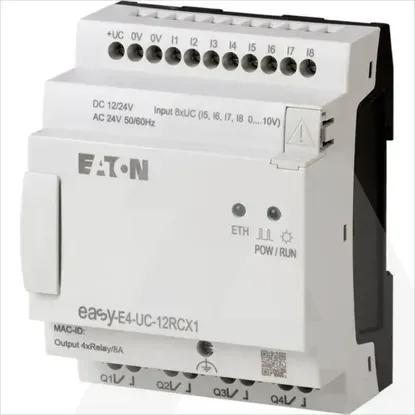

EASY-E4-UC-12RCX1
