Details
- •Low-voltage industrial components
- •Motor starter/motor starter combination
- •1 KOM
- •EATON
Technical specifications
Width22.5mm
Number of indicator lights0
With transformerNo
Depth114.5mm
Rated operation power at AC-3, 400 V3kW
Number of auxiliary contacts as normally open contact1
Suitable for emergency stopNo
Height99mm
Number of command positions0
Overload release current setting1.5 - 9A
Power consumption16.1W
Number of auxiliary contacts as normally closed contact1
Rated operation current Ie9A
Supporting protocol for ModbusNo
Supporting protocol for TCP/IPNo
Supporting protocol for CANNo
Supporting protocol for INTERBUSNo
Supporting protocol for PROFIBUSNo
Supporting protocol for ASINo
Supporting protocol for LONNo
Supporting protocol for other bus systemsNo
Supporting protocol for Data-HighwayNo
Rated control supply voltage Us at AC 50HZ230 - 230V
External reset possibleNo
Degree of protection (IP)IP20
Rail mounting possibleYes
Supporting protocol for INTERBUS-SafetyNo
With fuseNo
Rated control supply voltage Us at AC 60HZ0 - 0V
Type of electrical connection for auxiliary- and control current circuitScrew connection
Supporting protocol for DeviceNetNo
Supporting protocol for SUCONETNo
Supporting protocol for SERCOSNo
Type of electrical connection of main circuitScrew connection
Supporting protocol for AS-Interface Safety at WorkNo
Release classCLASS 10 A
Rated control supply voltage Us at DC0 - 0V
With short-circuit releaseNo
Supporting protocol for SafetyBUS pNo
Supporting protocol for PROFINET IONo
Supporting protocol for PROFINET CBANo
Supporting protocol for PROFIsafeNo
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for EtherNet/IPNo
Supporting protocol for Foundation FieldbusNo
Ambient temperature, upper operating limit70°C
Rated operation current at AC-3, 400 V6.5A
Rated power, 575 V, 60 Hz, 3-phase0kW
Rated power, 460 V, 60 Hz, 3-phase0kW
Temperature compensated overload protectionYes
Rated operation power at AC-3, 230 V, 3-phase1.5kW
Rated conditional short-circuit current, type 2, 230 V0A
Type of motor starterDirect online starter (DOL)
Rated conditional short-circuit current, type 2, 400 V0A
Rated conditional short-circuit current, type 1, 600 Y/347 V0A
Coordination class according to IEC 60947-4-3Class 1
Voltage type for actuatingAC
Degree of protection (NEMA)Other
Rated conditional short-circuit current, type 1, 480 Y/277 V0A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

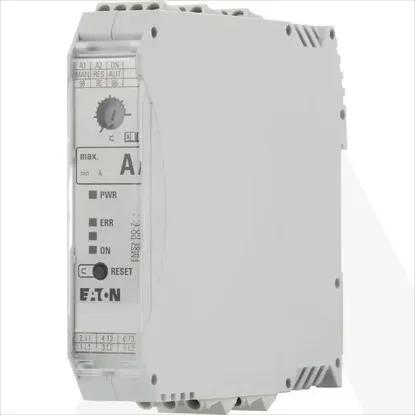

EMS2-DO-Z-9-230VAC
