Details
- •Low-voltage industrial components
- •Motor starter/motor starter combination
- •1 KOM
- •EATON
Technical specifications
Height99mm
Width22.5mm
Supporting protocol for LONNo
Depth114.5mm
Number of command positions0
Rated operation power at AC-3, 400 V3kW
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Number of indicator lights0
Power consumption12W
With transformerNo
Supporting protocol for TCP/IPNo
Overload release current setting1.5 - 9A
Rated operation current Ie9A
Suitable for emergency stopNo
Supporting protocol for PROFIBUSNo
Supporting protocol for ASINo
Supporting protocol for INTERBUSNo
Supporting protocol for CANNo
Supporting protocol for other bus systemsYes
Supporting protocol for SUCONETNo
Supporting protocol for DeviceNetNo
Supporting protocol for Data-HighwayNo
Supporting protocol for ModbusNo
Rail mounting possibleYes
External reset possibleNo
Rated control supply voltage Us at AC 50HZ0 - 0V
Rated control supply voltage Us at AC 60HZ0 - 0V
With short-circuit releaseNo
Supporting protocol for Foundation FieldbusNo
Release classCLASS 10 A
With fuseNo
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for INTERBUS-SafetyNo
Type of electrical connection of main circuitSpring clamp connection
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for SERCOSNo
Type of electrical connection for auxiliary- and control current circuitSpring clamp connection
Rated control supply voltage Us at DC24 - 24V
Degree of protection (IP)IP20
Supporting protocol for EtherNet/IPNo
Supporting protocol for PROFINET IONo
Supporting protocol for PROFIsafeNo
Supporting protocol for PROFINET CBANo
Rated power, 575 V, 60 Hz, 3-phase0kW
Ambient temperature, upper operating limit55°C
Rated power, 460 V, 60 Hz, 3-phase0kW
Type of motor starterDirect online starter (DOL)
Temperature compensated overload protectionYes
Supporting protocol for SafetyBUS pNo
Rated operation current at AC-3, 400 V6.5A
Rated operation power at AC-3, 230 V, 3-phase1.5kW
Degree of protection (NEMA)Other
Rated conditional short-circuit current, type 1, 480 Y/277 V0A
Rated conditional short-circuit current, type 1, 600 Y/347 V0A
Coordination class according to IEC 60947-4-3Class 1
Rated conditional short-circuit current, type 2, 230 V0A
Rated conditional short-circuit current, type 2, 400 V0A
Voltage type for actuatingDC
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

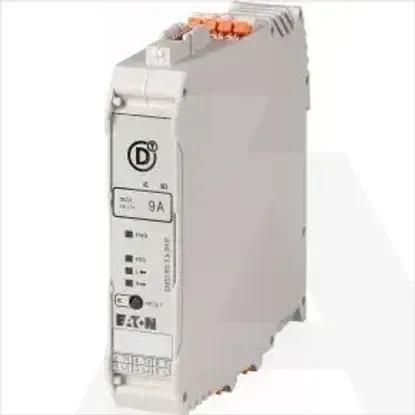

EMS2-DO-T-9-SWD
