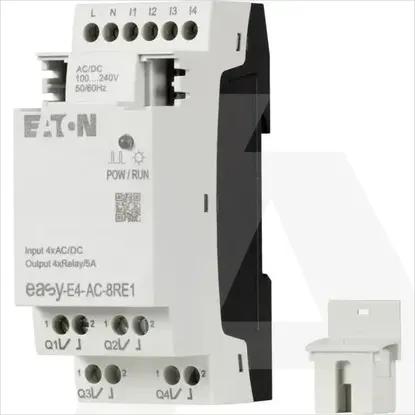

EASY-E4-AC-8RE1
Code: 1863035
Details
- •Programmable logic controllers PLC
- •Logic module
- •1 KOM
- •EATON
Technical specifications
Supply voltage AC 60 Hz85 - 264V
Number of analogue outputs0
Switching current5A
Power consumption3W
Supply voltage DC85 - 264V
Voltage type of supply voltageAC
Number of interfaces PROFINET0
With relay outputYes
Number of HW-interfaces other0
Number of HW-interfaces serial TTY0
Number of HW-interfaces parallel0
Number of HW-interfaces RS-4850
Number of HW-interfaces RS-2320
Supply voltage AC 50 Hz85 - 264V
Supporting protocol for CANNo
Number of analogue inputs0
With optical interfaceNo
Supporting protocol for Data-HighwayNo
Supporting protocol for EtherCATNo
Supporting protocol for PROFIBUSNo
Supporting protocol for ModbusYes
Supporting protocol for TCP/IPYes
Number of HW-interfaces Wireless0
Supporting protocol for KNXNo
Number of HW-interfaces industrial Ethernet0
Supporting protocol for INTERBUSNo
Supporting protocol for LONNo
Supporting protocol for ASINo
Supporting protocol for DeviceNetNo
Number of digital inputs4
Supporting protocol for Foundation FieldbusNo
Number of digital outputs4
Supporting protocol for PROFINET CBANo
Supporting protocol for EtherNet/IPNo
Number of HW-interfaces RS-4220
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for PROFIsafeNo
Supporting protocol for SafetyBUS pNo
Supporting protocol for SERCOSNo
Radio standard BluetoothNo
Supporting protocol for PROFINET IONo
Supporting protocol for INTERBUS-SafetyNo
Radio standard GPRSNo
Supporting protocol for SUCONETNo
Radio standard Wi-Fi 802.11No
Radio standard UMTSNo
Number of HW-interfaces USB0
Radio standard GSMNo
Supporting protocol for other bus systemsNo
IO link masterNo
RedundancyNo
With displayNo
Degree of protection (IP)IP20
Basic deviceNo
ExpandableYes
Expansion deviceYes
With time switch clockNo
Rail mounting possibleYes
Front built-in possibleYes
Wall mounting/direct mountingYes
Rack-assembly possibleNo
Suitable for safety functionsNo
SIL according to IEC 61508None
Performance level according to EN ISO 13849-1None
Appendant operation agent (Ex ia)No
Appendant operation agent (Ex ib)No
Explosion safety category for gasNone
Explosion safety category for dustNone
Certified for UL hazardous location class IYes
Certified for UL hazardous location class IIINo
Certified for UL hazardous location class IINo
Certified for UL hazardous location division 1No
Certified for UL hazardous location group A (acetylene)Yes
Certified for UL hazardous location division 2Yes
Certified for UL hazardous location group D (propane)Yes
Certified for UL hazardous location group B (hydrogen)No
Certified for UL hazardous location group C (ethylene)Yes
Certified for UL hazardous location group F (carbonaceous dusts)No
Certified for UL hazardous location group E (metal dusts)No
Certified for UL hazardous location group G (non-conductive dusts)No
Height90mm
Width36mm
Depth58mm
