Details
- •Programmable logic controllers PLC
- •Logic module
- •1 KOM
- •EATON
Technical specifications
Depth58mm
Height90mm
Width72mm
ExpandableYes
With displayNo
Power consumption3W
Voltage type of supply voltageAC/DC
Number of analogue outputs0
With time switch clockNo
Suitable for safety functionsNo
Number of digital outputs8
Number of analogue inputs0
Number of digital inputs8
Number of HW-interfaces industrial Ethernet0
Switching current5A
Supporting protocol for LONNo
Number of HW-interfaces parallel0
Supporting protocol for ModbusYes
With relay outputYes
With optical interfaceNo
Number of HW-interfaces other0
RedundancyNo
Supporting protocol for KNXNo
Number of HW-interfaces USB0
Supporting protocol for Data-HighwayNo
Number of HW-interfaces serial TTY0
Supporting protocol for ASINo
Supporting protocol for SUCONETNo
Number of HW-interfaces RS-4220
Supporting protocol for CANNo
Supporting protocol for DeviceNetNo
Supporting protocol for other bus systemsNo
Supporting protocol for TCP/IPYes
Rail mounting possibleYes
Number of HW-interfaces RS-4850
Number of HW-interfaces RS-2320
Supporting protocol for INTERBUSNo
Supporting protocol for PROFIBUSNo
Explosion safety category for gasNone
Appendant operation agent (Ex ia)No
Explosion safety category for dustNone
Degree of protection (IP)IP20
Supporting protocol for SERCOSNo
Supporting protocol for INTERBUS-SafetyNo
Front built-in possibleYes
Number of interfaces PROFINET0
Appendant operation agent (Ex ib)No
Number of HW-interfaces Wireless0
Rack-assembly possibleNo
Radio standard Wi-Fi 802.11No
Radio standard BluetoothNo
Expansion deviceYes
Basic deviceNo
Performance level according to EN ISO 13849-1None
Supporting protocol for EtherNet/IPNo
Supporting protocol for DeviceNet SafetyNo
Wall mounting/direct mountingYes
Supporting protocol for AS-Interface Safety at WorkNo
IO link masterNo
Supporting protocol for SafetyBUS pNo
Supporting protocol for PROFINET CBANo
Supporting protocol for PROFIsafeNo
Supply voltage AC 60 Hz85 - 264V
Supply voltage AC 50 Hz85 - 264V
Supporting protocol for PROFINET IONo
Supporting protocol for Foundation FieldbusNo
Radio standard GPRSNo
Supporting protocol for EtherCATNo
Certified for UL hazardous location division 2Yes
Certified for UL hazardous location group A (acetylene)Yes
Radio standard UMTSNo
SIL according to IEC 61508None
Supply voltage DC10.2 - 28.8V
Radio standard GSMNo
Certified for UL hazardous location class IIINo
Certified for UL hazardous location division 1No
Certified for UL hazardous location class IYes
Certified for UL hazardous location class IINo
Certified for UL hazardous location group C (ethylene)Yes
Certified for UL hazardous location group B (hydrogen)No
Certified for UL hazardous location group D (propane)Yes
Certified for UL hazardous location group F (carbonaceous dusts)No
Certified for UL hazardous location group E (metal dusts)No
Certified for UL hazardous location group G (non-conductive dusts)No
Related products
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

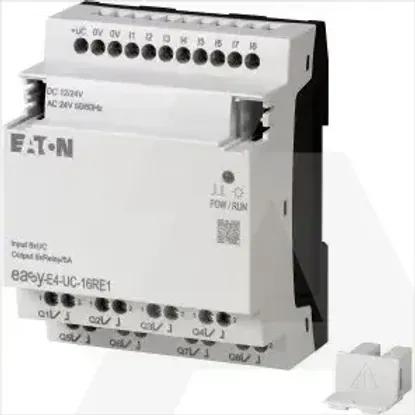

EASY-E4-UC-16RE1
