Details
- •Programmable logic controllers PLC
- •Logic module
- •1 KOM
- •EATON
Technical specifications
Height90mm
With displayNo
ExpandableYes
With time switch clockNo
Width36mm
Suitable for safety functionsNo
Depth58mm
Power consumption1W
Number of HW-interfaces RS-2320
Number of analogue inputs0
Number of HW-interfaces industrial Ethernet0
Number of HW-interfaces RS-4220
Number of HW-interfaces RS-4850
Number of analogue outputs0
Number of digital outputs4
Number of digital inputs4
Supporting protocol for LONNo
Voltage type of supply voltageDC
Switching current0.5A
Supporting protocol for Data-HighwayNo
Supporting protocol for ModbusYes
Supporting protocol for KNXNo
Supporting protocol for PROFIBUSNo
Supporting protocol for CANNo
Rail mounting possibleYes
Supporting protocol for other bus systemsNo
Number of HW-interfaces serial TTY0
Number of HW-interfaces other0
Supporting protocol for INTERBUSNo
Explosion safety category for gasNone
Number of HW-interfaces USB0
Supporting protocol for SUCONETNo
With optical interfaceNo
Supporting protocol for ASINo
Supporting protocol for TCP/IPYes
With relay outputNo
Supporting protocol for DeviceNetNo
RedundancyNo
Explosion safety category for dustNone
Appendant operation agent (Ex ib)No
Supporting protocol for SERCOSNo
Degree of protection (IP)IP20
Appendant operation agent (Ex ia)No
Number of HW-interfaces parallel0
Supporting protocol for INTERBUS-SafetyNo
Rack-assembly possibleNo
Wall mounting/direct mountingYes
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for PROFINET IONo
Supporting protocol for Foundation FieldbusNo
Number of HW-interfaces Wireless0
Expansion deviceYes
IO link masterNo
Supporting protocol for PROFIsafeNo
Radio standard Wi-Fi 802.11No
Performance level according to EN ISO 13849-1None
Front built-in possibleYes
Basic deviceNo
Number of interfaces PROFINET0
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for EtherNet/IPNo
Radio standard BluetoothNo
Supporting protocol for PROFINET CBANo
Supply voltage AC 60 Hz0 - 0V
Supporting protocol for SafetyBUS pNo
Radio standard GPRSNo
Supply voltage DC20.4 - 28.8V
Supply voltage AC 50 Hz0 - 0V
Radio standard GSMNo
SIL according to IEC 61508None
Certified for UL hazardous location class IYes
Certified for UL hazardous location group A (acetylene)Yes
Certified for UL hazardous location group E (metal dusts)No
Certified for UL hazardous location division 2Yes
Certified for UL hazardous location group D (propane)Yes
Certified for UL hazardous location division 1No
Supporting protocol for EtherCATNo
Certified for UL hazardous location class IIINo
Certified for UL hazardous location group C (ethylene)Yes
Certified for UL hazardous location class IINo
Certified for UL hazardous location group B (hydrogen)No
Radio standard UMTSNo
Certified for UL hazardous location group F (carbonaceous dusts)No
Certified for UL hazardous location group G (non-conductive dusts)No
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

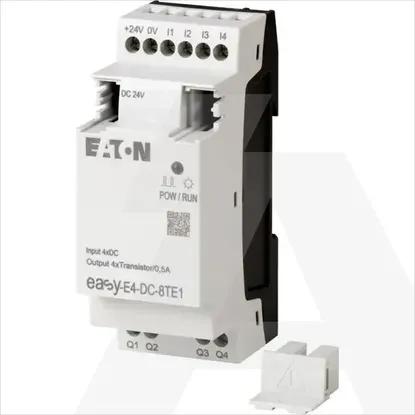

EASY-E4-DC-8TE1
