Details
- •Programmable logic controllers PLC
- •Logic module
- •1 KOM
- •EATON
Technical specifications
Supporting protocol for LONNo
Number of digital inputs0
Number of HW-interfaces RS-2320
Number of analogue outputs0
Power consumption1W
ExpandableYes
Number of analogue inputs4
Number of HW-interfaces industrial Ethernet0
With displayNo
Switching current0A
With time switch clockNo
Depth58mm
Suitable for safety functionsNo
Voltage type of supply voltageDC
Height90mm
Number of HW-interfaces RS-4850
Number of HW-interfaces RS-4220
Width36mm
Number of digital outputs0
Number of HW-interfaces USB0
With relay outputNo
Number of HW-interfaces serial TTY0
Number of HW-interfaces parallel0
Supporting protocol for PROFIBUSNo
Explosion safety category for gasNone
Rail mounting possibleYes
Supporting protocol for SUCONETNo
Supporting protocol for DeviceNetNo
Appendant operation agent (Ex ia)No
Supporting protocol for ModbusYes
RedundancyNo
Supporting protocol for KNXNo
Explosion safety category for dustNone
Supporting protocol for INTERBUSNo
Supporting protocol for Data-HighwayNo
With optical interfaceNo
Supporting protocol for TCP/IPYes
Supporting protocol for other bus systemsNo
Degree of protection (IP)IP20
Appendant operation agent (Ex ib)No
Supporting protocol for SERCOSNo
Supporting protocol for CANNo
Number of HW-interfaces other0
Supporting protocol for ASINo
Number of interfaces PROFINET0
Number of HW-interfaces Wireless0
Radio standard BluetoothNo
Radio standard Wi-Fi 802.11No
Rack-assembly possibleNo
Supporting protocol for Foundation FieldbusNo
Performance level according to EN ISO 13849-1None
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for PROFIsafeNo
IO link masterNo
Supply voltage AC 60 Hz0 - 0V
Supporting protocol for SafetyBUS pNo
Basic deviceNo
Supporting protocol for PROFINET CBANo
Supporting protocol for PROFINET IONo
Expansion deviceYes
Supply voltage DC20.4 - 28.8V
Supply voltage AC 50 Hz0 - 0V
Supporting protocol for INTERBUS-SafetyNo
Radio standard GSMNo
Front built-in possibleYes
Supporting protocol for EtherNet/IPNo
Radio standard GPRSNo
Supporting protocol for DeviceNet SafetyNo
Wall mounting/direct mountingYes
Certified for UL hazardous location group C (ethylene)Yes
Certified for UL hazardous location group A (acetylene)Yes
Certified for UL hazardous location group F (carbonaceous dusts)No
SIL according to IEC 61508None
Certified for UL hazardous location group E (metal dusts)No
Certified for UL hazardous location class IYes
Certified for UL hazardous location group G (non-conductive dusts)No
Certified for UL hazardous location division 1No
Radio standard UMTSNo
Certified for UL hazardous location group D (propane)Yes
Certified for UL hazardous location group B (hydrogen)No
Certified for UL hazardous location division 2Yes
Certified for UL hazardous location class IINo
Supporting protocol for EtherCATNo
Certified for UL hazardous location class IIINo
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

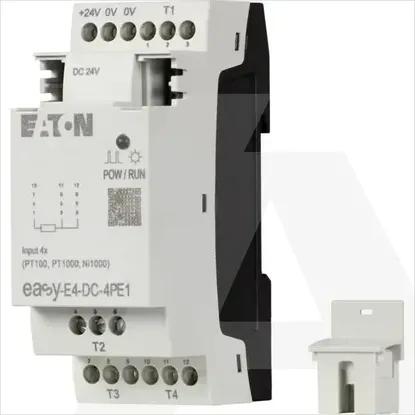

EASY-E4-DC-4PE1
