Details
- •Sensors
- •Inductive proximity switch
- •1 KOM
- •EATON
Technical specifications
Type of switching outputPNP
Rated control supply voltage Us at DC6 - 48V
Voltage typeDC
Material housingMetal
Number of contact energized outputs with signalling function0
Rated control supply voltage Us at AC 50HZ0 - 0V
Switching distance2mm
Switching frequency2000Hz
Explosion safety category for gasNone
Rated control supply voltage Us at AC 60HZ0 - 0V
Number of semiconductor outputs with signalling function1
Number of protected contact energized outputs0
Number of protected semiconductor outputs0
Type of switch functionBreaker contact
Type of interface for safety communicationNone
Type of electric connectionConnector M12
CascadableNo
Suitable for safety functionsNo
Coating housingOther
Max. output current at protected output0mA
Explosion safety category for dustNone
Construction type housingCylinder, screw-thread
SIL according to IEC 61508None
Supply voltage10 - 48V
Mechanical mounting condition for sensorConcise
Category according to EN 954-1B
Type of interfaceNone
Performance level according to EN ISO 13849-1None
Diameter sensor12mm
With monitoring function downstream switching devicesNo
Width sensor0mm
Type of actuationMetallic Target
Length of sensor68.7mm
Compression-resistantNo
Height of sensor0mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

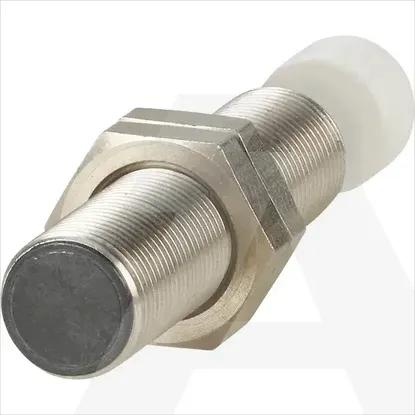

E57P-12SPC2-Q
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Sensors
- Inductive proximity switch
- 1 KOM
- EATON
DetailsTechnical specifications
Technical specifications
Type of switching output
PNP
Rated control supply voltage Us at DC
6 .. 48V
Voltage type
DC
Material housing
Metal
Number of contact energized outputs with signalling function
0
Rated control supply voltage Us at AC 50HZ
0 .. 0V
Switching distance
2mm
Switching frequency
2000Hz
Explosion safety category for gas
None
Rated control supply voltage Us at AC 60HZ
0 .. 0V
Number of semiconductor outputs with signalling function
1
Number of protected contact energized outputs
0
Number of protected semiconductor outputs
0
Type of switch function
Breaker contact
Type of interface for safety communication
None
Type of electric connection
Connector M12
Cascadable
Suitable for safety functions
Coating housing
Other
Max. output current at protected output
0mA
Explosion safety category for dust
None
Construction type housing
Cylinder, screw-thread
SIL according to IEC 61508
None
Supply voltage
10 .. 48V
Mechanical mounting condition for sensor
Concise
Category according to EN 954-1
B
Type of interface
None
Performance level according to EN ISO 13849-1
None
Diameter sensor
12mm
With monitoring function downstream switching devices
Width sensor
0mm
Type of actuation
Metallic Target
Length of sensor
68.7mm
Compression-resistant
Height of sensor
0mm
