Details
- •Sensors

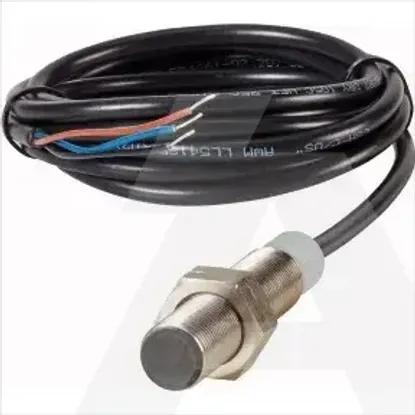

- •Inductive proximity switch
- •1 KOM
- •EATON
Technical specifications
Number of semiconductor outputs with signalling function1
Suitable for safety functionsNo
Voltage typeDC
Switching distance2mm
Switching frequency2000Hz
Coating housingOther
Material housingMetal
CascadableNo
Rated control supply voltage Us at AC 60HZ0 - 0V
Number of protected semiconductor outputs0
Type of interface for safety communicationNone
Type of electric connectionCable
Type of switching outputNPN
Type of switch functionBreaker contact
Number of protected contact energized outputs0
Rated control supply voltage Us at AC 50HZ0 - 0V
Number of contact energized outputs with signalling function0
Mechanical mounting condition for sensorConcise
Rated control supply voltage Us at DC10 - 30V
Category according to EN 954-1B
Explosion safety category for gasNone
Explosion safety category for dustNone
Max. output current at protected output0mA
With monitoring function downstream switching devicesNo
Construction type housingCylinder, screw-thread
Supply voltage10 - 30V
Length of sensor64.1mm
Type of interfaceNone
Width sensor0mm
Type of actuationMetallic Target
Height of sensor0mm
Diameter sensor12mm
Compression-resistantNo
SIL according to IEC 61508None
Performance level according to EN ISO 13849-1None
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
E57G-12SNN2-C2
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Sensors
- Inductive proximity switch
- 1 KOM
- EATON
DetailsTechnical specifications
Technical specifications
Number of semiconductor outputs with signalling function
1
Suitable for safety functions
Voltage type
DC
Switching distance
2mm
Switching frequency
2000Hz
Coating housing
Other
Material housing
Metal
Cascadable
Rated control supply voltage Us at AC 60HZ
0 .. 0V
Number of protected semiconductor outputs
0
Type of interface for safety communication
None
Type of electric connection
Cable
Type of switching output
NPN
Type of switch function
Breaker contact
Number of protected contact energized outputs
0
Rated control supply voltage Us at AC 50HZ
0 .. 0V
Number of contact energized outputs with signalling function
0
Mechanical mounting condition for sensor
Concise
Rated control supply voltage Us at DC
10 .. 30V
Category according to EN 954-1
B
Explosion safety category for gas
None
Explosion safety category for dust
None
Max. output current at protected output
0mA
With monitoring function downstream switching devices
Construction type housing
Cylinder, screw-thread
Supply voltage
10 .. 30V
Length of sensor
64.1mm
Type of interface
None
Width sensor
0mm
Type of actuation
Metallic Target
Height of sensor
0mm
Diameter sensor
12mm
Compression-resistant
SIL according to IEC 61508
None
Performance level according to EN ISO 13849-1
None
