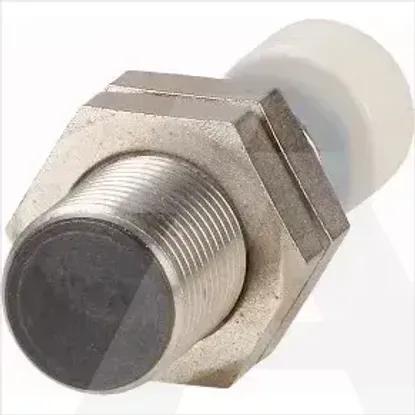

E57PS-12SPN2-Q
Code: 1863421
ManufacturerEaton
Catalog number197826
TypeE57PS-12SPN2-Q
CategoryInductive proximity switch
EAN code4015081949335
Details
- •Sensors
- •Inductive proximity switch
- •1 KOM
- •EATON
Technical specifications
Material housingMetal
Suitable for safety functionsNo
Voltage typeDC
CascadableNo
Number of semiconductor outputs with signalling function1
Switching frequency2000Hz
Type of interface for safety communicationNone
Number of protected semiconductor outputs0
Type of electric connectionConnector M12
Number of contact energized outputs with signalling function0
Coating housingOther
Number of protected contact energized outputs0
Construction type housingCylinder, screw-thread
Rated control supply voltage Us at DC6 - 48V
Rated control supply voltage Us at AC 60HZ0 - 0V
Rated control supply voltage Us at AC 50HZ0 - 0V
Explosion safety category for gasNone
Type of switch functionNormally open contact
Mechanical mounting condition for sensorConcise
Max. output current at protected output0mA
With monitoring function downstream switching devicesNo
Explosion safety category for dustNone
Type of actuationMetallic Target
Type of interfaceNone
Category according to EN 954-1B
Performance level according to EN ISO 13849-1None
SIL according to IEC 61508None
Compression-resistantNo
Switching distance2mm
Type of switching outputPNP
Supply voltage10 - 48V
Width sensor0mm
Diameter sensor12mm
Height of sensor0mm
Length of sensor45.6mm
