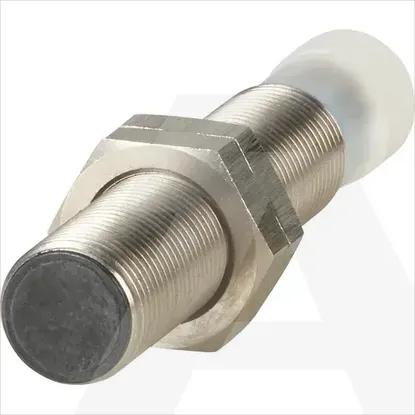

E57G-12SPC4-Q
Code: 1863425
ManufacturerEaton
Catalog number197686
TypeE57G-12SPC4-Q
CategoryInductive proximity switch
EAN code4015081947935
Details
- •Sensors
- •Inductive proximity switch
- •1 KOM
- •EATON
Technical specifications
Voltage typeDC
CascadableNo
Suitable for safety functionsNo
Max. output current at protected output0mA
Explosion safety category for dustNone
Number of protected contact energized outputs0
Number of contact energized outputs with signalling function0
Material housingMetal
Type of interface for safety communicationNone
Rated control supply voltage Us at DC6 - 48V
With monitoring function downstream switching devicesNo
Explosion safety category for gasNone
Number of protected semiconductor outputs0
Mechanical mounting condition for sensorConcise
Type of electric connectionConnector M12
Rated control supply voltage Us at AC 50HZ0 - 0V
Rated control supply voltage Us at AC 60HZ0 - 0V
Switching frequency2000Hz
Type of switch functionBreaker contact
Construction type housingCylinder, screw-thread
Category according to EN 954-1B
Type of actuationMetallic Target
Number of semiconductor outputs with signalling function1
Coating housingOther
Performance level according to EN ISO 13849-1None
Compression-resistantNo
Type of interfaceNone
SIL according to IEC 61508None
Switching distance4mm
Type of switching outputPNP
Supply voltage10 - 48V
Width sensor0mm
Diameter sensor12mm
Height of sensor0mm
Length of sensor68.7mm
