Details
- •Sensors

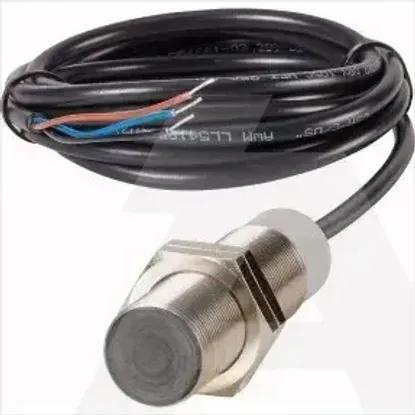

- •Inductive proximity switch
- •1 KOM
- •EATON
Technical specifications
Suitable for safety functionsNo
Material housingMetal
Voltage typeDC
CascadableNo
Coating housingOther
Switching frequency1200Hz
Switching distance5mm
Explosion safety category for gasNone
Number of semiconductor outputs with signalling function1
Number of protected semiconductor outputs0
Type of switch functionBreaker contact
Explosion safety category for dustNone
Number of protected contact energized outputs0
Rated control supply voltage Us at DC10 - 30V
Type of interface for safety communicationNone
Type of switching outputPNP
Type of electric connectionCable
Rated control supply voltage Us at AC 60HZ0 - 0V
Rated control supply voltage Us at AC 50HZ0 - 0V
Number of contact energized outputs with signalling function0
With monitoring function downstream switching devicesNo
Mechanical mounting condition for sensorConcise
Category according to EN 954-1B
Width sensor0mm
Type of interfaceNone
Max. output current at protected output0mA
Construction type housingCylinder, screw-thread
Type of actuationMetallic Target
Supply voltage10 - 30V
Compression-resistantNo
SIL according to IEC 61508None
Height of sensor0mm
Performance level according to EN ISO 13849-1None
Length of sensor65.9mm
Diameter sensor18mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
E57G-18SPC5-C2
