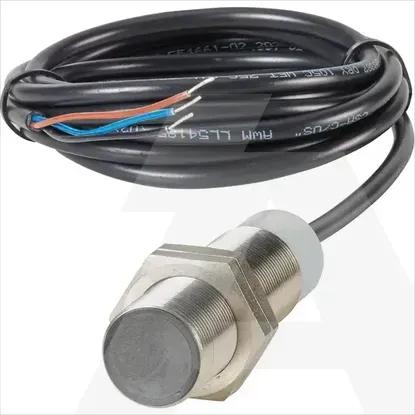

E57P-18SPC5-C2
Code: 1863433
ManufacturerEaton
Catalog number197791
TypeE57P-18SPC5-C2
CategoryInductive proximity switch
EAN code4015081948987
Details
- •Sensors
- •Inductive proximity switch
- •1 KOM
- •EATON
Technical specifications
Voltage typeDC
CascadableNo
Suitable for safety functionsNo
Material housingMetal
Number of contact energized outputs with signalling function0
Switching frequency1200Hz
Coating housingOther
Number of semiconductor outputs with signalling function1
Number of protected semiconductor outputs0
Number of protected contact energized outputs0
Type of interface for safety communicationNone
Type of electric connectionCable
Rated control supply voltage Us at AC 50HZ0 - 0V
Type of switch functionBreaker contact
Rated control supply voltage Us at DC10 - 30V
Rated control supply voltage Us at AC 60HZ0 - 0V
Mechanical mounting condition for sensorConcise
Explosion safety category for gasNone
Max. output current at protected output0mA
With monitoring function downstream switching devicesNo
Construction type housingCylinder, screw-thread
Explosion safety category for dustNone
Category according to EN 954-1B
Type of actuationMetallic Target
Type of interfaceNone
Compression-resistantNo
SIL according to IEC 61508None
Performance level according to EN ISO 13849-1None
Switching distance5mm
Type of switching outputPNP
Supply voltage10 - 30V
Width sensor0mm
Diameter sensor18mm
Height of sensor0mm
Length of sensor65.9mm
