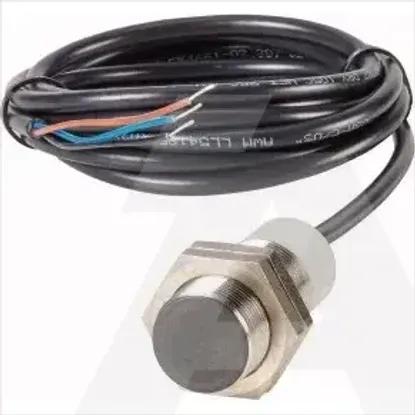

E57PS-18SNN5-C2
Code: 1863443
ManufacturerEaton
Catalog number197837
TypeE57PS-18SNN5-C2
CategoryInductive proximity switch
EAN code4015081949441
Details
- •Sensors
- •Inductive proximity switch
- •1 KOM
- •EATON
Technical specifications
CascadableNo
Number of contact energized outputs with signalling function0
Number of protected semiconductor outputs0
Suitable for safety functionsNo
Number of protected contact energized outputs0
Voltage typeDC
Number of semiconductor outputs with signalling function1
Material housingMetal
Coating housingOther
Switching frequency1200Hz
Type of interface for safety communicationNone
Type of electric connectionCable
Construction type housingCylinder, screw-thread
Explosion safety category for gasNone
Rated control supply voltage Us at AC 60HZ0 - 0V
With monitoring function downstream switching devicesNo
Explosion safety category for dustNone
Rated control supply voltage Us at AC 50HZ0 - 0V
Max. output current at protected output0mA
Mechanical mounting condition for sensorConcise
Rated control supply voltage Us at DC10 - 30V
Type of switch functionBreaker contact
Type of interfaceNone
Compression-resistantNo
Category according to EN 954-1B
Type of actuationMetallic Target
Performance level according to EN ISO 13849-1None
SIL according to IEC 61508None
Switching distance5mm
Type of switching outputNPN
Supply voltage10 - 30V
Width sensor0mm
Diameter sensor18mm
Height of sensor0mm
Length of sensor65.9mm
