Details
- •Sensors
- •Inductive proximity switch
- •1 KOM
- •EATON
Technical specifications
Voltage typeDC
Material housingMetal
Type of interface for safety communicationNone
Number of protected semiconductor outputs0
CascadableNo
Suitable for safety functionsNo
Number of contact energized outputs with signalling function0
Switching frequency1200Hz
Number of protected contact energized outputs0
Number of semiconductor outputs with signalling function1
Coating housingOther
Switching distance5mm
Type of switch functionNormally open contact
Rated control supply voltage Us at AC 50HZ0 - 0V
Rated control supply voltage Us at AC 60HZ0 - 0V
Type of switching outputPNP
Type of electric connectionConnector M12
With monitoring function downstream switching devicesNo
Compression-resistantNo
Type of interfaceNone
Explosion safety category for gasNone
Height of sensor0mm
SIL according to IEC 61508None
Type of actuationMetallic Target
Length of sensor69.2mm
Rated control supply voltage Us at DC6 - 48V
Diameter sensor18mm
Supply voltage10 - 48V
Performance level according to EN ISO 13849-1None
Category according to EN 954-1B
Construction type housingCylinder, screw-thread
Mechanical mounting condition for sensorConcise
Explosion safety category for dustNone
Max. output current at protected output0mA
Width sensor0mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

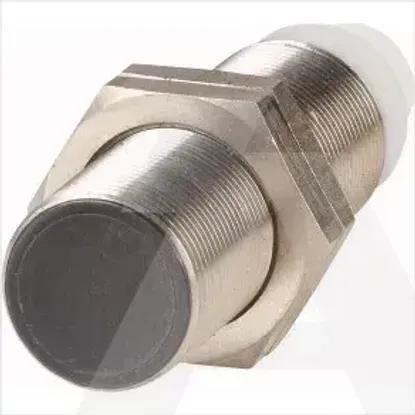

E57P-18SPN5-Q
