Details
- •Sensors for automation technology

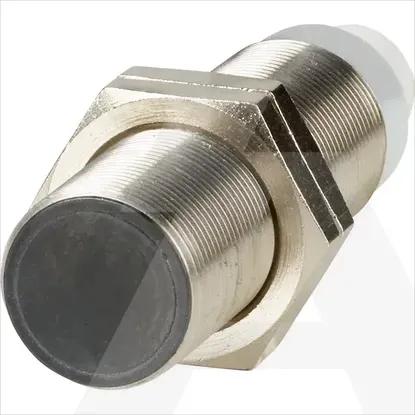

- •Inductive proximity switch
- •1 KOM
- •EATON
Technical specifications
Number of protected contact energized outputs0
Suitable for safety functionsNo
Switching frequency1200Hz
Type of electric connectionConnector M12
Type of switch functionNormally open contact
Material housingMetal
CascadableNo
Number of protected semiconductor outputs0
Type of interface for safety communicationNone
Number of semiconductor outputs with signalling function1
Voltage typeDC
Number of contact energized outputs with signalling function0
Coating housingOther
Construction type housingCylinder, screw-thread
Explosion safety category for dustNone
Max. output current at protected output0mA
Rated control supply voltage Us at AC 50HZ0 - 0V
Explosion safety category for gasNone
Rated control supply voltage Us at AC 60HZ0 - 0V
Rated control supply voltage Us at DC6 - 48V
Type of interfaceNone
Category according to EN 954-1B
Mechanical mounting condition for sensorConcise
With monitoring function downstream switching devicesNo
SIL according to IEC 61508None
Type of actuationMetallic Target
Compression-resistantNo
Performance level according to EN ISO 13849-1None
Switching distance8mm
Type of switching outputPNP
Supply voltage10 - 48V
Width sensor0mm
Diameter sensor18mm
Height of sensor0mm
Length of sensor69.2mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
E57G-18SPN8-Q
