Details
- •Sensors
- •Inductive proximity switch
- •1 KOM
- •EATON
Technical specifications
Voltage typeDC
CascadableNo
Material housingMetal
Suitable for safety functionsNo
Number of semiconductor outputs with signalling function1
Switching distance10mm
Number of contact energized outputs with signalling function0
Switching frequency600Hz
Coating housingOther
Type of electric connectionCable
Number of protected semiconductor outputs0
Number of protected contact energized outputs0
Type of interface for safety communicationNone
Rated control supply voltage Us at AC 60HZ0 - 0V
Rated control supply voltage Us at DC10 - 30V
Rated control supply voltage Us at AC 50HZ0 - 0V
Type of switch functionBreaker contact
With monitoring function downstream switching devicesNo
Explosion safety category for gasNone
Mechanical mounting condition for sensorConcise
Max. output current at protected output0mA
Construction type housingCylinder, screw-thread
Explosion safety category for dustNone
Type of actuationMetallic Target
Supply voltage10 - 30V
Category according to EN 954-1B
Type of interfaceNone
Compression-resistantNo
Width sensor0mm
Length of sensor67.7mm
Height of sensor0mm
Diameter sensor30mm
Performance level according to EN ISO 13849-1None
SIL according to IEC 61508None
Type of switching outputNPN
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

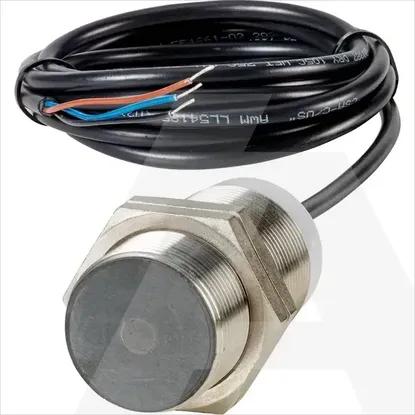

E57P-30SNC10-C2
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Sensors
- Inductive proximity switch
- 1 KOM
- EATON
DetailsTechnical specifications
Technical specifications
Voltage type
DC
Cascadable
Material housing
Metal
Suitable for safety functions
Number of semiconductor outputs with signalling function
1
Switching distance
10mm
Number of contact energized outputs with signalling function
0
Switching frequency
600Hz
Coating housing
Other
Type of electric connection
Cable
Number of protected semiconductor outputs
0
Number of protected contact energized outputs
0
Type of interface for safety communication
None
Rated control supply voltage Us at AC 60HZ
0 .. 0V
Rated control supply voltage Us at DC
10 .. 30V
Rated control supply voltage Us at AC 50HZ
0 .. 0V
Type of switch function
Breaker contact
With monitoring function downstream switching devices
Explosion safety category for gas
None
Mechanical mounting condition for sensor
Concise
Max. output current at protected output
0mA
Construction type housing
Cylinder, screw-thread
Explosion safety category for dust
None
Type of actuation
Metallic Target
Supply voltage
10 .. 30V
Category according to EN 954-1
B
Type of interface
None
Compression-resistant
Width sensor
0mm
Length of sensor
67.7mm
Height of sensor
0mm
Diameter sensor
30mm
Performance level according to EN ISO 13849-1
None
SIL according to IEC 61508
None
Type of switching output
NPN
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
