Details
- •Sensors
- •Inductive proximity switch
- •1 KOM
- •EATON
Technical specifications
CascadableNo
Coating housingOther
Material housingMetal
Voltage typeDC
Suitable for safety functionsNo
Compression-resistantNo
Switching distance10mm
Type of switching outputPNP
Number of semiconductor outputs with signalling function1
Type of electric connectionConnector M12
Category according to EN 954-1B
Type of switch functionNormally open contact
Switching frequency600Hz
Type of interface for safety communicationNone
Rated control supply voltage Us at AC 60HZ0 - 0V
Rated control supply voltage Us at AC 50HZ0 - 0V
Construction type housingCylinder, screw-thread
Number of protected contact energized outputs0
With monitoring function downstream switching devicesNo
Supply voltage10 - 48V
Explosion safety category for gasNone
Explosion safety category for dustNone
Width sensor0mm
Mechanical mounting condition for sensorConcise
Type of interfaceNone
Number of protected semiconductor outputs0
Type of actuationMetallic Target
Rated control supply voltage Us at DC6 - 48V
Max. output current at protected output0mA
Number of contact energized outputs with signalling function0
Length of sensor70.9mm
Performance level according to EN ISO 13849-1None
SIL according to IEC 61508None
Height of sensor0mm
Diameter sensor30mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

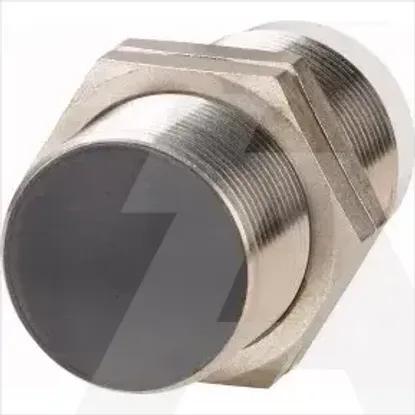

E57P-30SPN10-Q
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Sensors
- Inductive proximity switch
- 1 KOM
- EATON
DetailsTechnical specifications
Technical specifications
Cascadable
Coating housing
Other
Material housing
Metal
Voltage type
DC
Suitable for safety functions
Compression-resistant
Switching distance
10mm
Type of switching output
PNP
Number of semiconductor outputs with signalling function
1
Type of electric connection
Connector M12
Category according to EN 954-1
B
Type of switch function
Normally open contact
Switching frequency
600Hz
Type of interface for safety communication
None
Rated control supply voltage Us at AC 60HZ
0 .. 0V
Rated control supply voltage Us at AC 50HZ
0 .. 0V
Construction type housing
Cylinder, screw-thread
Number of protected contact energized outputs
0
With monitoring function downstream switching devices
Supply voltage
10 .. 48V
Explosion safety category for gas
None
Explosion safety category for dust
None
Width sensor
0mm
Mechanical mounting condition for sensor
Concise
Type of interface
None
Number of protected semiconductor outputs
0
Type of actuation
Metallic Target
Rated control supply voltage Us at DC
6 .. 48V
Max. output current at protected output
0mA
Number of contact energized outputs with signalling function
0
Length of sensor
70.9mm
Performance level according to EN ISO 13849-1
None
SIL according to IEC 61508
None
Height of sensor
0mm
Diameter sensor
30mm
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
