Details
- •Sensors
- •Inductive proximity switch
- •1 KOM
- •EATON
Technical specifications
Number of contact energized outputs with signalling function0
Number of semiconductor outputs with signalling function1
Number of protected contact energized outputs0
CascadableNo
Material housingMetal
Switching distance10mm
Switching frequency600Hz
Suitable for safety functionsNo
Number of protected semiconductor outputs0
Voltage typeDC
Coating housingOther
Rated control supply voltage Us at DC6 - 48V
Rated control supply voltage Us at AC 60HZ0 - 0V
Type of electric connectionConnector M12
Type of interface for safety communicationNone
Explosion safety category for dustNone
Rated control supply voltage Us at AC 50HZ0 - 0V
Explosion safety category for gasNone
Type of switching outputPNP
Construction type housingCylinder, screw-thread
Max. output current at protected output0mA
Type of switch functionNormally open contact
Width sensor0mm
Type of actuationMetallic Target
Type of interfaceNone
Supply voltage10 - 48V
Mechanical mounting condition for sensorConcise
Category according to EN 954-1B
With monitoring function downstream switching devicesNo
Diameter sensor30mm
Length of sensor70.9mm
Height of sensor0mm
Compression-resistantNo
Performance level according to EN ISO 13849-1None
SIL according to IEC 61508None
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

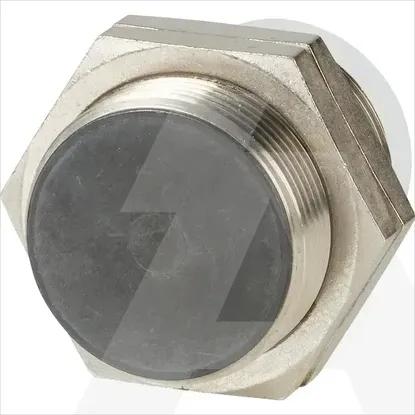

E57PS-30SPN10-Q
