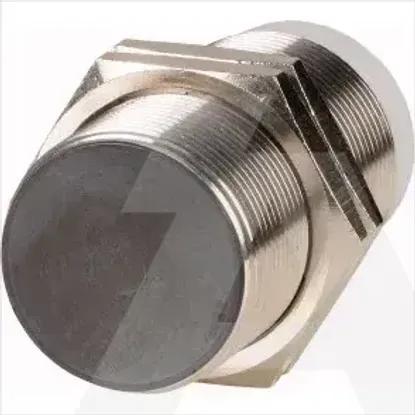

E57G-30SNN15-Q
Code: 1863491
ManufacturerEaton
Catalog number197746
TypeE57G-30SNN15-Q
CategoryInductive proximity switch
EAN code4015081948536
Details
- •Sensors
- •Inductive proximity switch
- •1 KOM
- •EATON
Technical specifications
Number of semiconductor outputs with signalling function1
Suitable for safety functionsNo
CascadableNo
Number of protected contact energized outputs0
Number of contact energized outputs with signalling function0
Switching frequency600Hz
Number of protected semiconductor outputs0
Coating housingOther
Material housingMetal
Voltage typeDC
Type of switch functionBreaker contact
Rated control supply voltage Us at AC 50HZ0 - 0V
Rated control supply voltage Us at DC6 - 48V
Rated control supply voltage Us at AC 60HZ0 - 0V
Type of interface for safety communicationNone
Type of electric connectionConnector M12
With monitoring function downstream switching devicesNo
Max. output current at protected output0mA
Mechanical mounting condition for sensorConcise
Explosion safety category for dustNone
Explosion safety category for gasNone
Performance level according to EN ISO 13849-1None
Type of actuationMetallic Target
Construction type housingCylinder, screw-thread
Category according to EN 954-1B
Compression-resistantNo
Type of interfaceNone
SIL according to IEC 61508None
Switching distance15mm
Type of switching outputNPN
Supply voltage10 - 48V
Width sensor0mm
Diameter sensor30mm
Height of sensor0mm
Length of sensor70.9mm
