Details
- •Sensors
- •Inductive proximity switch
- •1 KOM
- •EATON
Technical specifications
CascadableNo
Voltage typeDC
Material housingMetal
Coating housingOther
Switching frequency2000Hz
Suitable for safety functionsNo
Switching distance4mm
Number of contact energized outputs with signalling function0
Type of interface for safety communicationNone
Number of protected contact energized outputs0
Number of semiconductor outputs with signalling function1
Number of protected semiconductor outputs0
Type of electric connectionConnector M12
Type of switch functionBreaker contact
Type of switching outputNPN
Rated control supply voltage Us at AC 50HZ0 - 0V
Rated control supply voltage Us at DC6 - 48V
Explosion safety category for gasNone
Rated control supply voltage Us at AC 60HZ0 - 0V
Explosion safety category for dustNone
Max. output current at protected output0mA
Mechanical mounting condition for sensorNot flat
With monitoring function downstream switching devicesNo
Construction type housingCylinder, screw-thread
Type of interfaceNone
Category according to EN 954-1B
Supply voltage10 - 48V
Type of actuationMetallic Target
Width sensor0mm
Diameter sensor12mm
Height of sensor0mm
Performance level according to EN ISO 13849-1None
Length of sensor68.7mm
Compression-resistantNo
SIL according to IEC 61508None
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

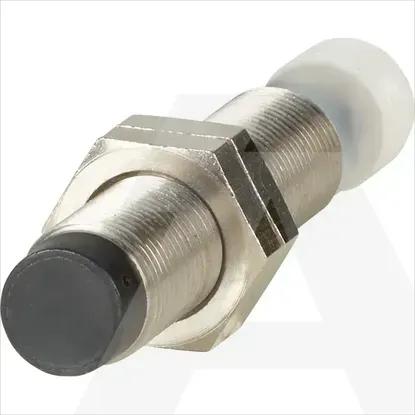

E57G-12UNC4-Q
