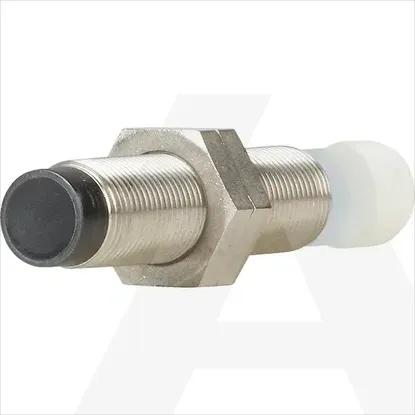

E57P-12UNC4-Q
Code: 1863500
ManufacturerEaton
Catalog number197780
TypeE57P-12UNC4-Q
CategoryInductive proximity switch
EAN code4015081948871
Details
- •Sensors
- •Inductive proximity switch
- •1 KOM
- •EATON
Technical specifications
CascadableNo
Suitable for safety functionsNo
Material housingMetal
Voltage typeDC
Coating housingOther
Switching frequency2000Hz
Number of contact energized outputs with signalling function0
Number of semiconductor outputs with signalling function1
Number of protected semiconductor outputs0
Type of interface for safety communicationNone
Number of protected contact energized outputs0
Type of switch functionBreaker contact
Rated control supply voltage Us at AC 50HZ0 - 0V
Type of actuationMetallic Target
Explosion safety category for gasNone
Category according to EN 954-1B
With monitoring function downstream switching devicesNo
Type of electric connectionConnector M12
Explosion safety category for dustNone
Type of interfaceNone
Max. output current at protected output0mA
Rated control supply voltage Us at AC 60HZ0 - 0V
Compression-resistantNo
Mechanical mounting condition for sensorNot flat
Rated control supply voltage Us at DC6 - 48V
Construction type housingCylinder, screw-thread
SIL according to IEC 61508None
Performance level according to EN ISO 13849-1None
Switching distance4mm
Type of switching outputNPN
Supply voltage10 - 48V
Width sensor0mm
Diameter sensor12mm
Height of sensor0mm
Length of sensor68.7mm
