Details
- •Sensors
- •Inductive proximity switch
- •1 KOM
- •EATON
Technical specifications
Material housingMetal
Voltage typeDC
Switching distance4mm
Coating housingOther
Switching frequency2000Hz
Suitable for safety functionsNo
CascadableNo
Number of contact energized outputs with signalling function0
Number of protected semiconductor outputs0
Type of interface for safety communicationNone
Number of semiconductor outputs with signalling function1
Type of electric connectionConnector M12
Number of protected contact energized outputs0
Type of switching outputNPN
Type of switch functionBreaker contact
Explosion safety category for gasNone
Construction type housingCylinder, screw-thread
Rated control supply voltage Us at AC 50HZ0 - 0V
With monitoring function downstream switching devicesNo
Rated control supply voltage Us at AC 60HZ0 - 0V
Rated control supply voltage Us at DC6 - 48V
Mechanical mounting condition for sensorNot flat
Explosion safety category for dustNone
Max. output current at protected output0mA
Compression-resistantNo
Diameter sensor12mm
Height of sensor0mm
Type of actuationMetallic Target
Category according to EN 954-1B
SIL according to IEC 61508None
Width sensor0mm
Supply voltage10 - 48V
Length of sensor45.6mm
Type of interfaceNone
Performance level according to EN ISO 13849-1None
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

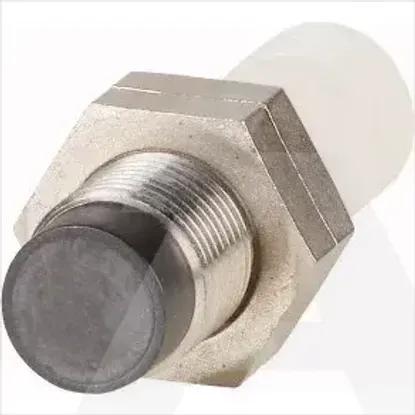

E57PS-12UNC4-Q
