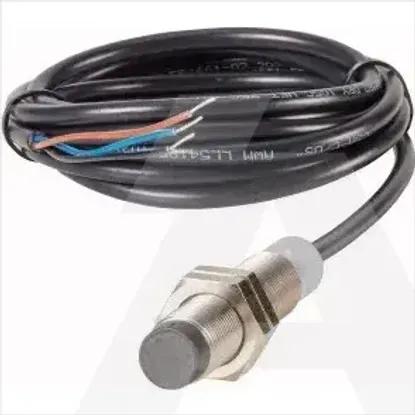

E57G-12UPC8-C2
Code: 1863518
ManufacturerEaton
Catalog number197701
TypeE57G-12UPC8-C2
CategoryInductive proximity switch
EAN code4015081948086
Details
- •Sensors
- •Inductive proximity switch
- •1 KOM
- •EATON
Technical specifications
Suitable for safety functionsNo
CascadableNo
Switching frequency2000Hz
Rated control supply voltage Us at AC 60HZ0 - 0V
Explosion safety category for gasNone
Number of contact energized outputs with signalling function0
Type of electric connectionCable
Number of protected semiconductor outputs0
Type of interface for safety communicationNone
Type of switch functionBreaker contact
Number of semiconductor outputs with signalling function1
Rated control supply voltage Us at DC10 - 30V
Rated control supply voltage Us at AC 50HZ0 - 0V
Number of protected contact energized outputs0
Material housingMetal
Voltage typeDC
Coating housingOther
Explosion safety category for dustNone
Construction type housingCylinder, screw-thread
Max. output current at protected output0mA
Type of interfaceNone
With monitoring function downstream switching devicesNo
Type of actuationMetallic Target
SIL according to IEC 61508None
Category according to EN 954-1B
Mechanical mounting condition for sensorNot flat
Performance level according to EN ISO 13849-1None
Compression-resistantNo
Switching distance8mm
Type of switching outputPNP
Supply voltage10 - 30V
Width sensor0mm
Diameter sensor12mm
Height of sensor0mm
Length of sensor64.1mm
