Details
- •Sensors
- •Inductive proximity switch
- •1 KOM
- •EATON
Technical specifications
Voltage typeDC
CascadableNo
Number of protected semiconductor outputs0
Switching distance8mm
Type of interface for safety communicationNone
Coating housingOther
Type of electric connectionCable
Material housingMetal
Number of contact energized outputs with signalling function0
Switching frequency1200Hz
Number of semiconductor outputs with signalling function1
Suitable for safety functionsNo
Number of protected contact energized outputs0
Type of switching outputPNP
Type of switch functionBreaker contact
Rated control supply voltage Us at AC 50HZ0 - 0V
Rated control supply voltage Us at AC 60HZ0 - 0V
Explosion safety category for gasNone
Category according to EN 954-1B
Rated control supply voltage Us at DC10 - 30V
Construction type housingCylinder, screw-thread
Length of sensor65.9mm
Height of sensor0mm
Diameter sensor18mm
Type of interfaceNone
Mechanical mounting condition for sensorNot flat
Width sensor0mm
With monitoring function downstream switching devicesNo
Performance level according to EN ISO 13849-1None
Explosion safety category for dustNone
Max. output current at protected output0mA
SIL according to IEC 61508None
Type of actuationMetallic Target
Compression-resistantNo
Supply voltage10 - 30V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

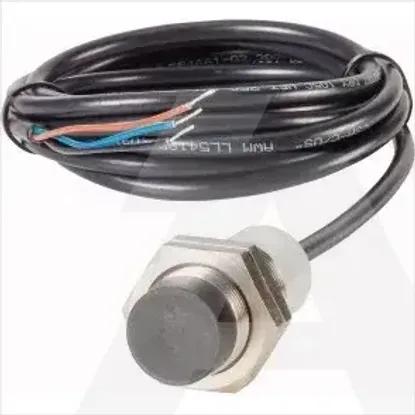

E57PS-18UPC8-C2
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Sensors
- Inductive proximity switch
- 1 KOM
- EATON
DetailsTechnical specifications
Technical specifications
Voltage type
DC
Cascadable
Number of protected semiconductor outputs
0
Switching distance
8mm
Type of interface for safety communication
None
Coating housing
Other
Type of electric connection
Cable
Material housing
Metal
Number of contact energized outputs with signalling function
0
Switching frequency
1200Hz
Number of semiconductor outputs with signalling function
1
Suitable for safety functions
Number of protected contact energized outputs
0
Type of switching output
PNP
Type of switch function
Breaker contact
Rated control supply voltage Us at AC 50HZ
0 .. 0V
Rated control supply voltage Us at AC 60HZ
0 .. 0V
Explosion safety category for gas
None
Category according to EN 954-1
B
Rated control supply voltage Us at DC
10 .. 30V
Construction type housing
Cylinder, screw-thread
Length of sensor
65.9mm
Height of sensor
0mm
Diameter sensor
18mm
Type of interface
None
Mechanical mounting condition for sensor
Not flat
Width sensor
0mm
With monitoring function downstream switching devices
Performance level according to EN ISO 13849-1
None
Explosion safety category for dust
None
Max. output current at protected output
0mA
SIL according to IEC 61508
None
Type of actuation
Metallic Target
Compression-resistant
Supply voltage
10 .. 30V
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
