Details
- •Sensors
- •Inductive proximity switch
- •1 KOM
- •EATON
Technical specifications
Number of semiconductor outputs with signalling function1
Rated control supply voltage Us at AC 60HZ0 - 0V
Coating housingOther
Type of electric connectionConnector M12
Voltage typeDC
Switching frequency1200Hz
Type of interface for safety communicationNone
Rated control supply voltage Us at DC6 - 48V
Number of contact energized outputs with signalling function0
Rated control supply voltage Us at AC 50HZ0 - 0V
Number of protected contact energized outputs0
Type of switching outputPNP
Switching distance8mm
Suitable for safety functionsNo
Number of protected semiconductor outputs0
Type of switch functionBreaker contact
Material housingMetal
Explosion safety category for gasNone
CascadableNo
Mechanical mounting condition for sensorNot flat
With monitoring function downstream switching devicesNo
Category according to EN 954-1B
Height of sensor0mm
Supply voltage10 - 48V
Max. output current at protected output0mA
Diameter sensor18mm
Type of actuationMetallic Target
Width sensor0mm
Length of sensor69.2mm
Performance level according to EN ISO 13849-1None
Construction type housingCylinder, screw-thread
Explosion safety category for dustNone
Compression-resistantNo
SIL according to IEC 61508None
Type of interfaceNone
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

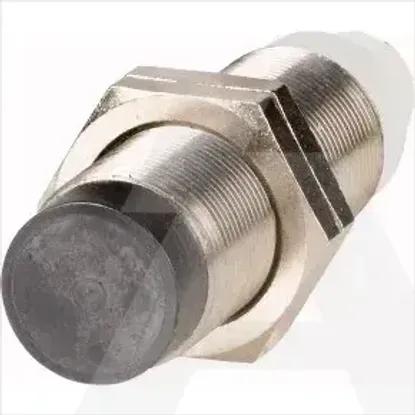

E57G-18UPC8-Q
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Sensors
- Inductive proximity switch
- 1 KOM
- EATON
DetailsTechnical specifications
Technical specifications
Number of semiconductor outputs with signalling function
1
Rated control supply voltage Us at AC 60HZ
0 .. 0V
Coating housing
Other
Type of electric connection
Connector M12
Voltage type
DC
Switching frequency
1200Hz
Type of interface for safety communication
None
Rated control supply voltage Us at DC
6 .. 48V
Number of contact energized outputs with signalling function
0
Rated control supply voltage Us at AC 50HZ
0 .. 0V
Number of protected contact energized outputs
0
Type of switching output
PNP
Switching distance
8mm
Suitable for safety functions
Number of protected semiconductor outputs
0
Type of switch function
Breaker contact
Material housing
Metal
Explosion safety category for gas
None
Cascadable
Mechanical mounting condition for sensor
Not flat
With monitoring function downstream switching devices
Category according to EN 954-1
B
Height of sensor
0mm
Supply voltage
10 .. 48V
Max. output current at protected output
0mA
Diameter sensor
18mm
Type of actuation
Metallic Target
Width sensor
0mm
Length of sensor
69.2mm
Performance level according to EN ISO 13849-1
None
Construction type housing
Cylinder, screw-thread
Explosion safety category for dust
None
Compression-resistant
SIL according to IEC 61508
None
Type of interface
None
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
