Details
- •Sensors
- •Inductive proximity switch
- •1 KOM
- •EATON
Technical specifications
Voltage typeDC
Material housingMetal
Coating housingOther
CascadableNo
Suitable for safety functionsNo
Switching frequency1200Hz
Switching distance8mm
Number of protected semiconductor outputs0
Number of contact energized outputs with signalling function0
Number of semiconductor outputs with signalling function1
Type of interface for safety communicationNone
Type of electric connectionCable
Number of protected contact energized outputs0
Rated control supply voltage Us at AC 60HZ0 - 0V
Type of switch functionBreaker contact
Supply voltage10 - 30V
Type of actuationMetallic Target
Max. output current at protected output0mA
Rated control supply voltage Us at AC 50HZ0 - 0V
Rated control supply voltage Us at DC10 - 30V
Explosion safety category for dustNone
Construction type housingCylinder, screw-thread
Explosion safety category for gasNone
Category according to EN 954-1B
Mechanical mounting condition for sensorNot flat
With monitoring function downstream switching devicesNo
Type of switching outputNPN
Type of interfaceNone
Height of sensor0mm
Performance level according to EN ISO 13849-1None
Diameter sensor18mm
Width sensor0mm
Length of sensor65.9mm
Compression-resistantNo
SIL according to IEC 61508None
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

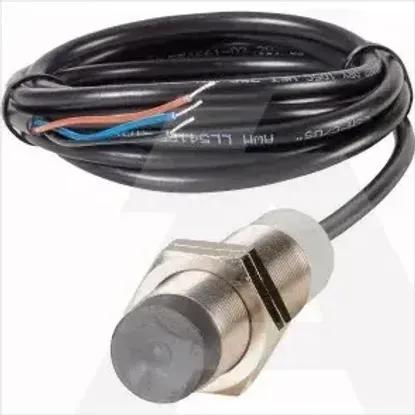

E57G-18UNN8-C2
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Sensors
- Inductive proximity switch
- 1 KOM
- EATON
DetailsTechnical specifications
Technical specifications
Voltage type
DC
Material housing
Metal
Coating housing
Other
Cascadable
Suitable for safety functions
Switching frequency
1200Hz
Switching distance
8mm
Number of protected semiconductor outputs
0
Number of contact energized outputs with signalling function
0
Number of semiconductor outputs with signalling function
1
Type of interface for safety communication
None
Type of electric connection
Cable
Number of protected contact energized outputs
0
Rated control supply voltage Us at AC 60HZ
0 .. 0V
Type of switch function
Breaker contact
Supply voltage
10 .. 30V
Type of actuation
Metallic Target
Max. output current at protected output
0mA
Rated control supply voltage Us at AC 50HZ
0 .. 0V
Rated control supply voltage Us at DC
10 .. 30V
Explosion safety category for dust
None
Construction type housing
Cylinder, screw-thread
Explosion safety category for gas
None
Category according to EN 954-1
B
Mechanical mounting condition for sensor
Not flat
With monitoring function downstream switching devices
Type of switching output
NPN
Type of interface
None
Height of sensor
0mm
Performance level according to EN ISO 13849-1
None
Diameter sensor
18mm
Width sensor
0mm
Length of sensor
65.9mm
Compression-resistant
SIL according to IEC 61508
None
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
