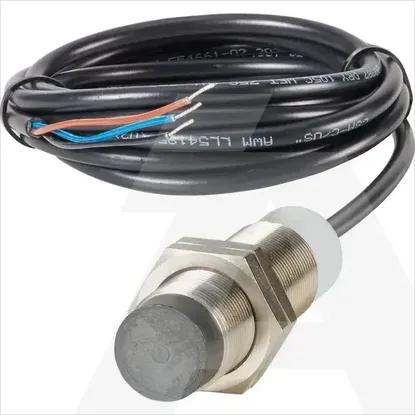

E57P-18UPN8-C2
Code: 1863549
ManufacturerEaton
Catalog number197801
TypeE57P-18UPN8-C2
CategoryInductive proximity switch
EAN code4015081949083
Details
- •Sensors
- •Inductive proximity switch
- •1 KOM
- •EATON
Technical specifications
Suitable for safety functionsNo
Number of semiconductor outputs with signalling function1
Material housingMetal
Number of protected semiconductor outputs0
Voltage typeDC
Number of protected contact energized outputs0
Coating housingOther
Switching frequency1200Hz
Type of electric connectionCable
Number of contact energized outputs with signalling function0
Type of interface for safety communicationNone
CascadableNo
With monitoring function downstream switching devicesNo
Performance level according to EN ISO 13849-1None
Rated control supply voltage Us at DC10 - 30V
Compression-resistantNo
Construction type housingCylinder, screw-thread
Rated control supply voltage Us at AC 50HZ0 - 0V
Explosion safety category for dustNone
SIL according to IEC 61508None
Max. output current at protected output0mA
Type of actuationMetallic Target
Type of interfaceNone
Type of switch functionNormally open contact
Explosion safety category for gasNone
Category according to EN 954-1B
Mechanical mounting condition for sensorNot flat
Rated control supply voltage Us at AC 60HZ0 - 0V
Switching distance8mm
Type of switching outputPNP
Supply voltage10 - 30V
Width sensor0mm
Diameter sensor18mm
Height of sensor0mm
Length of sensor65.9mm
