Details
- •Sensors for automation technology
- •Inductive proximity switch
- •1 KOM
- •EATON
Technical specifications
Voltage typeDC
CascadableNo
Material housingMetal
Suitable for safety functionsNo
Coating housingOther
Switching frequency1200Hz
Number of semiconductor outputs with signalling function1
Number of contact energized outputs with signalling function0
Number of protected semiconductor outputs0
Number of protected contact energized outputs0
Type of interface for safety communicationNone
Type of electric connectionConnector M12
Type of switching outputPNP
Type of switch functionNormally open contact
Rated control supply voltage Us at AC 50HZ0 - 0V
Rated control supply voltage Us at AC 60HZ0 - 0V
Rated control supply voltage Us at DC6 - 48V
Explosion safety category for gasNone
Explosion safety category for dustNone
Construction type housingCylinder, screw-thread
Max. output current at protected output0mA
Mechanical mounting condition for sensorNot flat
With monitoring function downstream switching devicesNo
Supply voltage10 - 48V
Category according to EN 954-1B
Type of actuationMetallic Target
Type of interfaceNone
Width sensor0mm
Compression-resistantNo
Height of sensor0mm
Length of sensor69.2mm
Performance level according to EN ISO 13849-1None
SIL according to IEC 61508None
Switching distance8mm
Diameter sensor18mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

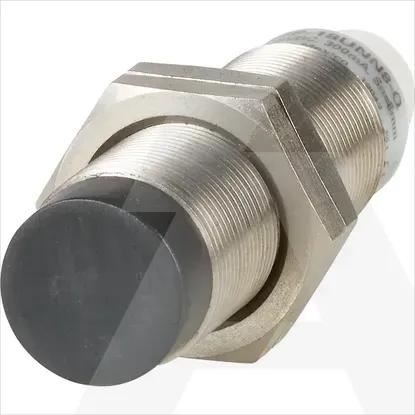

E57P-18UPN8-Q
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Sensors for automation technology
- Inductive proximity switch
- 1 KOM
- EATON
DetailsTechnical specifications
Technical specifications
Voltage type
DC
Cascadable
Material housing
Metal
Suitable for safety functions
Coating housing
Other
Switching frequency
1200Hz
Number of semiconductor outputs with signalling function
1
Number of contact energized outputs with signalling function
0
Number of protected semiconductor outputs
0
Number of protected contact energized outputs
0
Type of interface for safety communication
None
Type of electric connection
Connector M12
Type of switching output
PNP
Type of switch function
Normally open contact
Rated control supply voltage Us at AC 50HZ
0 .. 0V
Rated control supply voltage Us at AC 60HZ
0 .. 0V
Rated control supply voltage Us at DC
6 .. 48V
Explosion safety category for gas
None
Explosion safety category for dust
None
Construction type housing
Cylinder, screw-thread
Max. output current at protected output
0mA
Mechanical mounting condition for sensor
Not flat
With monitoring function downstream switching devices
Supply voltage
10 .. 48V
Category according to EN 954-1
B
Type of actuation
Metallic Target
Type of interface
None
Width sensor
0mm
Compression-resistant
Height of sensor
0mm
Length of sensor
69.2mm
Performance level according to EN ISO 13849-1
None
SIL according to IEC 61508
None
Switching distance
8mm
Diameter sensor
18mm
