Details
- •Sensors
- •Inductive proximity switch
- •1 KOM
- •EATON
Technical specifications
CascadableNo
Voltage typeDC
Material housingMetal
Coating housingOther
Explosion safety category for gasNone
Number of contact energized outputs with signalling function0
Mechanical mounting condition for sensorNot flat
Construction type housingCylinder, screw-thread
Rated control supply voltage Us at AC 50HZ0 - 0V
Type of switch functionNormally open contact
Rated control supply voltage Us at AC 60HZ0 - 0V
Rated control supply voltage Us at DC6 - 48V
Number of protected contact energized outputs0
Type of interface for safety communicationNone
Max. output current at protected output0mA
Type of interfaceNone
Type of switching outputPNP
Switching frequency1200Hz
Type of electric connectionConnector M12
Category according to EN 954-1B
Number of semiconductor outputs with signalling function1
With monitoring function downstream switching devicesNo
Suitable for safety functionsNo
Type of actuationMetallic Target
Explosion safety category for dustNone
Number of protected semiconductor outputs0
Supply voltage10 - 48V
Switching distance8mm
Length of sensor69.2mm
Compression-resistantNo
Width sensor0mm
Height of sensor0mm
SIL according to IEC 61508None
Diameter sensor18mm
Performance level according to EN ISO 13849-1None
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

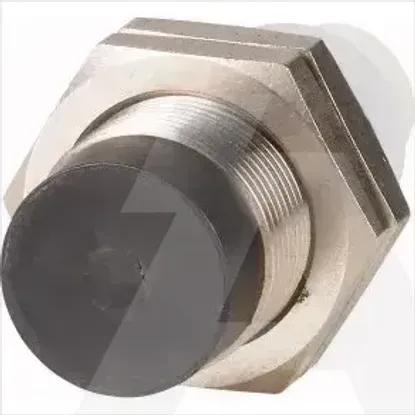

E57PS-18UPN8-Q
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Sensors
- Inductive proximity switch
- 1 KOM
- EATON
DetailsTechnical specifications
Technical specifications
Cascadable
Voltage type
DC
Material housing
Metal
Coating housing
Other
Explosion safety category for gas
None
Number of contact energized outputs with signalling function
0
Mechanical mounting condition for sensor
Not flat
Construction type housing
Cylinder, screw-thread
Rated control supply voltage Us at AC 50HZ
0 .. 0V
Type of switch function
Normally open contact
Rated control supply voltage Us at AC 60HZ
0 .. 0V
Rated control supply voltage Us at DC
6 .. 48V
Number of protected contact energized outputs
0
Type of interface for safety communication
None
Max. output current at protected output
0mA
Type of interface
None
Type of switching output
PNP
Switching frequency
1200Hz
Type of electric connection
Connector M12
Category according to EN 954-1
B
Number of semiconductor outputs with signalling function
1
With monitoring function downstream switching devices
Suitable for safety functions
Type of actuation
Metallic Target
Explosion safety category for dust
None
Number of protected semiconductor outputs
0
Supply voltage
10 .. 48V
Switching distance
8mm
Length of sensor
69.2mm
Compression-resistant
Width sensor
0mm
Height of sensor
0mm
SIL according to IEC 61508
None
Diameter sensor
18mm
Performance level according to EN ISO 13849-1
None
