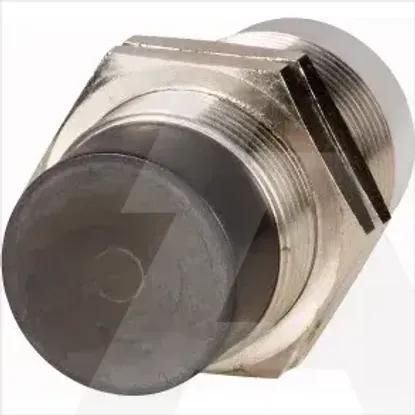

E57G-30UPC15-Q
Code: 1863566
ManufacturerEaton
Catalog number197764
TypeE57G-30UPC15-Q
CategoryInductive proximity switch
EAN code4015081948710
Details
- •Sensors
- •Inductive proximity switch
- •1 KOM
- •EATON
Technical specifications
Suitable for safety functionsNo
Switching frequency600Hz
Material housingMetal
Voltage typeDC
Coating housingOther
CascadableNo
Number of semiconductor outputs with signalling function1
Mechanical mounting condition for sensorNot flat
Number of contact energized outputs with signalling function0
Construction type housingCylinder, screw-thread
Explosion safety category for dustNone
Type of interfaceNone
Rated control supply voltage Us at DC6 - 48V
Rated control supply voltage Us at AC 50HZ0 - 0V
Number of protected semiconductor outputs0
Rated control supply voltage Us at AC 60HZ0 - 0V
Type of switch functionBreaker contact
Number of protected contact energized outputs0
Type of actuationMetallic Target
Explosion safety category for gasNone
Category according to EN 954-1B
Max. output current at protected output0mA
Type of interface for safety communicationNone
With monitoring function downstream switching devicesNo
Type of electric connectionConnector M12
Compression-resistantNo
Performance level according to EN ISO 13849-1None
SIL according to IEC 61508None
Switching distance15mm
Type of switching outputPNP
Supply voltage10 - 48V
Width sensor0mm
Diameter sensor30mm
Height of sensor0mm
Length of sensor70.9mm
