Technical specifications
Construction type housingCylinder, screw-thread
Material housingMetal
Voltage typeDC
Type of switching outputPNP
Type of switch functionBreaker contact
Number of semiconductor outputs with signalling function1
CascadableNo
Number of protected semiconductor outputs0
Explosion safety category for dustNone
Suitable for safety functionsNo
Rated control supply voltage Us at AC 60HZ0 - 0V
Type of interface for safety communicationNone
Number of contact energized outputs with signalling function0
Rated control supply voltage Us at DC6 - 48V
Explosion safety category for gasNone
Type of electric connectionConnector M12
Rated control supply voltage Us at AC 50HZ0 - 0V
Coating housingOther
Switching frequency600Hz
Switching distance15mm
Number of protected contact energized outputs0
Compression-resistantNo
Mechanical mounting condition for sensorNot flat
SIL according to IEC 61508None
Performance level according to EN ISO 13849-1None
With monitoring function downstream switching devicesNo
Length of sensor70.9mm
Max. output current at protected output0mA
Type of actuationMetallic Target
Category according to EN 954-1B
Height of sensor0mm
Supply voltage10 - 48V
Width sensor0mm
Type of interfaceNone
Diameter sensor30mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

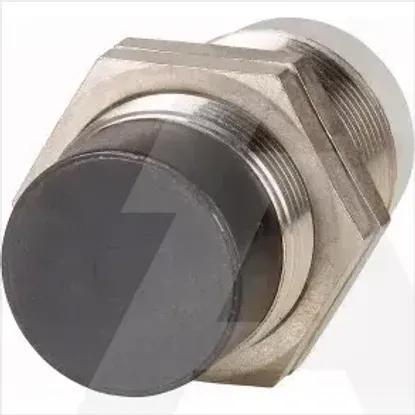

E57P-30UPC15-Q
