Details
- •Sensors
- •Inductive proximity switch
- •1 KOM
- •EATON
Technical specifications
Material housingMetal
CascadableNo
Number of semiconductor outputs with signalling function1
Voltage typeDC
Switching distance15mm
Switching frequency600Hz
Suitable for safety functionsNo
Coating housingOther
Number of protected contact energized outputs0
Number of contact energized outputs with signalling function0
Number of protected semiconductor outputs0
Type of interface for safety communicationNone
Type of electric connectionCable
Max. output current at protected output0mA
Mechanical mounting condition for sensorNot flat
With monitoring function downstream switching devicesNo
Explosion safety category for dustNone
Explosion safety category for gasNone
Rated control supply voltage Us at AC 50HZ0 - 0V
Rated control supply voltage Us at AC 60HZ0 - 0V
Type of switching outputNPN
Rated control supply voltage Us at DC10 - 30V
Type of switch functionBreaker contact
Construction type housingCylinder, screw-thread
SIL according to IEC 61508None
Supply voltage10 - 30V
Type of actuationMetallic Target
Performance level according to EN ISO 13849-1None
Diameter sensor30mm
Category according to EN 954-1B
Compression-resistantNo
Height of sensor0mm
Width sensor0mm
Type of interfaceNone
Length of sensor67.7mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

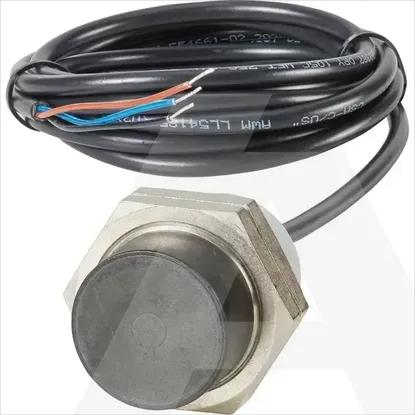

E57PS-30UNN15-C2
