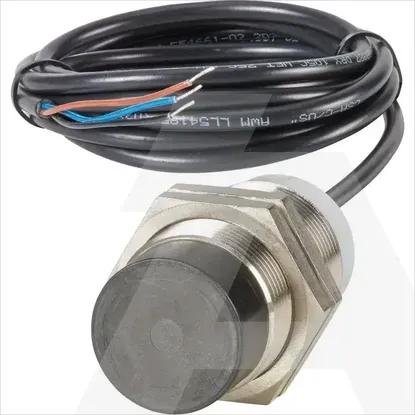

E57P-30UPN15-C2
Code: 1863573
ManufacturerEaton
Catalog number197817
TypeE57P-30UPN15-C2
CategoryInductive proximity switch
EAN code4015081949243
Details
- •Sensors
- •Inductive proximity switch
- •1 KOM
- •EATON
Technical specifications
Suitable for safety functionsNo
Type of interface for safety communicationNone
Number of contact energized outputs with signalling function0
Coating housingOther
Number of protected contact energized outputs0
CascadableNo
Number of semiconductor outputs with signalling function1
Material housingMetal
Switching frequency600Hz
Number of protected semiconductor outputs0
Voltage typeDC
Type of electric connectionCable
Rated control supply voltage Us at DC10 - 30V
Type of switch functionNormally open contact
SIL according to IEC 61508None
With monitoring function downstream switching devicesNo
Explosion safety category for dustNone
Compression-resistantNo
Category according to EN 954-1B
Construction type housingCylinder, screw-thread
Type of actuationMetallic Target
Rated control supply voltage Us at AC 60HZ0 - 0V
Max. output current at protected output0mA
Explosion safety category for gasNone
Mechanical mounting condition for sensorNot flat
Type of interfaceNone
Rated control supply voltage Us at AC 50HZ0 - 0V
Performance level according to EN ISO 13849-1None
Switching distance15mm
Type of switching outputPNP
Supply voltage10 - 30V
Width sensor0mm
Diameter sensor30mm
Height of sensor0mm
Length of sensor67.7mm
