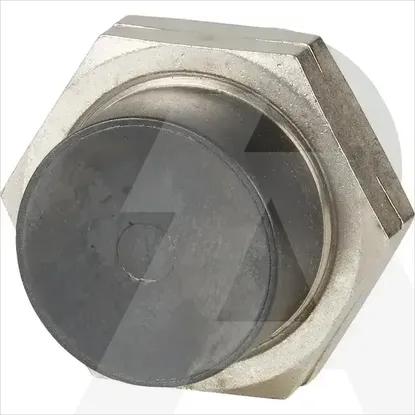

E57PS-30UPN15-Q
Code: 1863580
ManufacturerEaton
Catalog number197866
TypeE57PS-30UPN15-Q
CategoryInductive proximity switch
EAN code4015081949731
Details
- •Sensors
- •Inductive proximity switch
- •1 KOM
- •EATON
Technical specifications
CascadableNo
Switching frequency600Hz
Material housingMetal
Voltage typeDC
Type of switch functionNormally open contact
Number of protected semiconductor outputs0
Number of protected contact energized outputs0
Rated control supply voltage Us at AC 60HZ0 - 0V
Type of interface for safety communicationNone
Coating housingOther
Rated control supply voltage Us at DC6 - 48V
Type of electric connectionConnector M12
Rated control supply voltage Us at AC 50HZ0 - 0V
Number of contact energized outputs with signalling function0
Number of semiconductor outputs with signalling function1
Suitable for safety functionsNo
Compression-resistantNo
With monitoring function downstream switching devicesNo
Construction type housingCylinder, screw-thread
Category according to EN 954-1B
Max. output current at protected output0mA
SIL according to IEC 61508None
Explosion safety category for dustNone
Type of interfaceNone
Explosion safety category for gasNone
Performance level according to EN ISO 13849-1None
Mechanical mounting condition for sensorNot flat
Type of actuationMetallic Target
Switching distance15mm
Type of switching outputPNP
Supply voltage10 - 48V
Width sensor0mm
Diameter sensor30mm
Height of sensor0mm
Length of sensor70.9mm
