Details

  • •Low-voltage industrial components
  • •Switch disconnector (low voltage)
  • •1 KOM
  • •EATON

Technical specifications

Rated operation power at AC-3, 400 V11kW
Width200mm
Depth250mm
Height155mm
Conditioned rated short-circuit current Iq1kA
Number of auxiliary contacts as normally closed contact1
Degree of protection (IP), front sideIP65
Rated permanent current Iu32A
Number of auxiliary contacts as change-over contact0
Rated operating voltage690 - 690V
InterlockableYes
Motor drive integratedNo
Number of switches1
Number of poles6
Version as main switchYes
Type of control elementDoor coupling rotary drive
Version as safety switchYes
Type of electrical connection of main circuitScrew connection
Version as emergency stop installationYes
Number of auxiliary contacts as normally open contact1
Suitable for floor mountingYes
Version as maintenance-/service switchYes
Suitable for front mounting 4-holeNo
Suitable for front mounting centreNo
Suitable for intermediate mountingNo
Rated operation power at AC-23, 400 V15kW
Suitable for distribution board installationNo
Colour control elementRed
Rated short-time withstand current lcw0.65kA
Max. rated operation voltage Ue AC690V
Version as reversing switchNo
Voltage release optionalNo
Rated permanent current at AC-21, 400 V32A
Switching power at 400 V15kW
Rated permanent current at AC-23, 400 V32A
Degree of protection (NEMA)12
With pre-assembled cablingNo
Motor drive optionalNo
Device constructionComplete device in housing
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

T3-4-15682/SE2/SVB

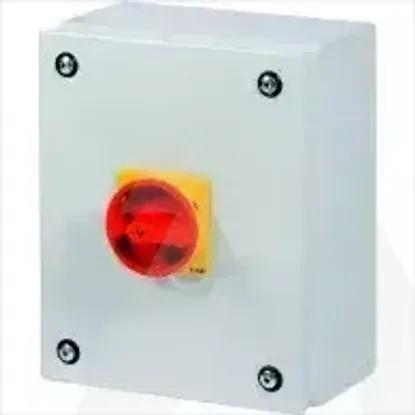

Main Product Image
