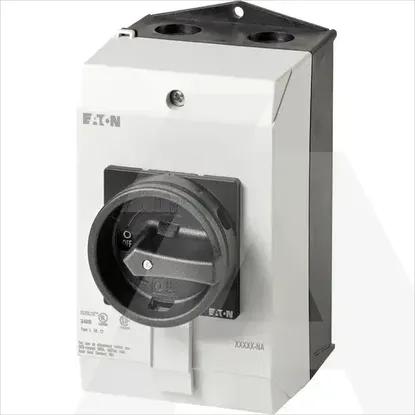

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Width100mm
Depth115mm
Height180mm
Conditioned rated short-circuit current Iq80kA
Number of auxiliary contacts as normally open contact0
Rated operation power at AC-3, 400 V7.5kW
Rated operating voltage690 - 690V
Number of poles3
Degree of protection (IP), front sideIP65
Type of electrical connection of main circuitScrew connection
Number of auxiliary contacts as change-over contact0
Version as emergency stop installationNo
Rated permanent current Iu25A
Motor drive integratedNo
InterlockableYes
Number of auxiliary contacts as normally closed contact0
Number of switches1
Version as maintenance-/service switchYes
Type of control elementDoor coupling rotary drive
Rated short-time withstand current lcw0.64kA
Suitable for distribution board installationNo
Version as safety switchNo
Version as main switchYes
Suitable for front mounting 4-holeNo
Suitable for floor mountingYes
Colour control elementBlack
Suitable for intermediate mountingNo
Suitable for front mounting centreNo
Rated operation power at AC-23, 400 V13kW
Motor drive optionalNo
Device constructionComplete device in housing
Rated permanent current at AC-23, 400 V25A
Voltage release optionalNo
Max. rated operation voltage Ue AC690V
Version as reversing switchNo
Degree of protection (NEMA)12
Switching power at 400 V13kW
With pre-assembled cablingNo
Rated permanent current at AC-21, 400 V25A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
P1-25/I2/SVB-SW-NA
